AWD : Exploded View

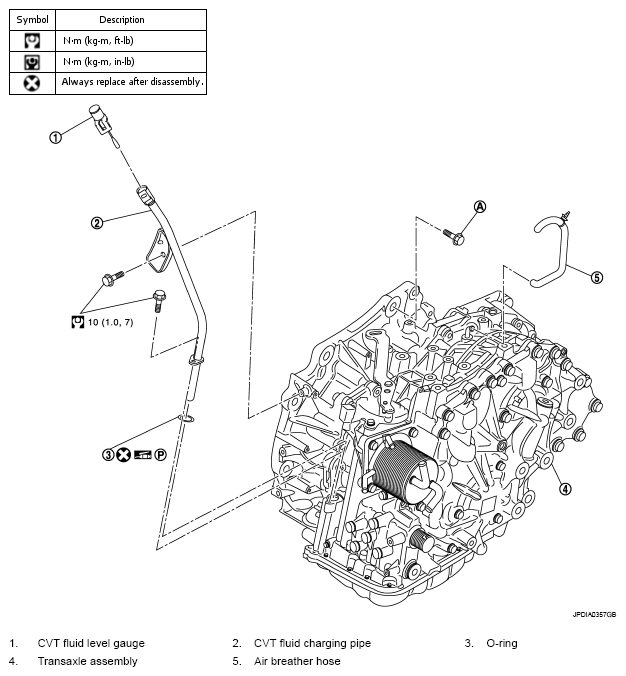

Fig 1: Exploded View Of Transaxle Assembly (AWD) With Torque Specifications

G05370115
