Removal and Installation: Removal

CAUTION: Never impact on TCM when removing or installing TCM.
  1. Disconnect the battery cable from the negative terminal.
  2. Disconnect TCM harness connector (A).

    ←: Vehicle front

  3. Remove TCM (1) from battery bracket (2).

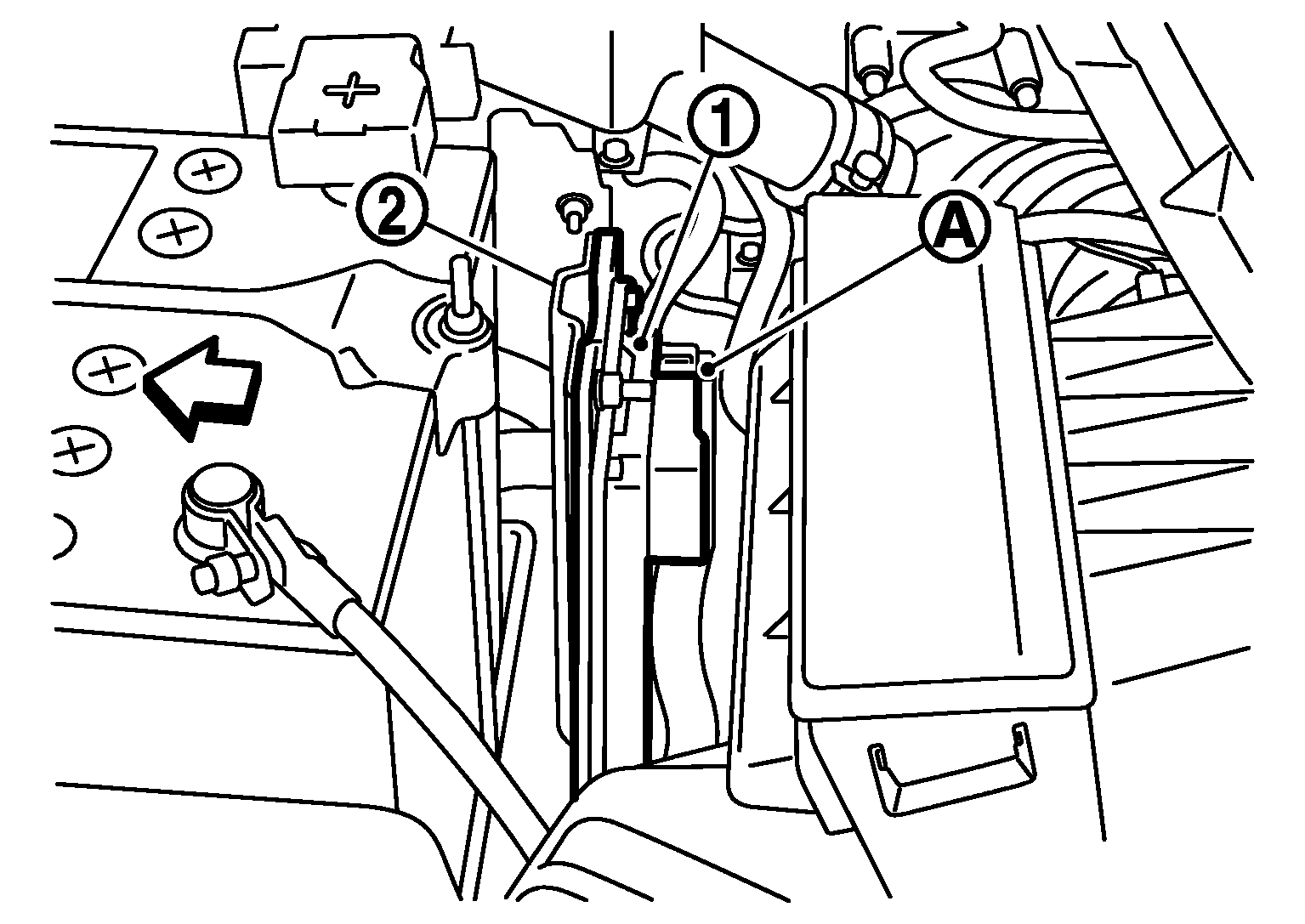

    Fig 1: Identifying TCM Harness Connector, TCM And Battery Bracket
    G05370043
