Home >> Nissan-Datsun >> 2008 >> Rogue SL, AWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> On-Vehicle Repair >> Transmission Control Module >> Exploded View

Exploded View

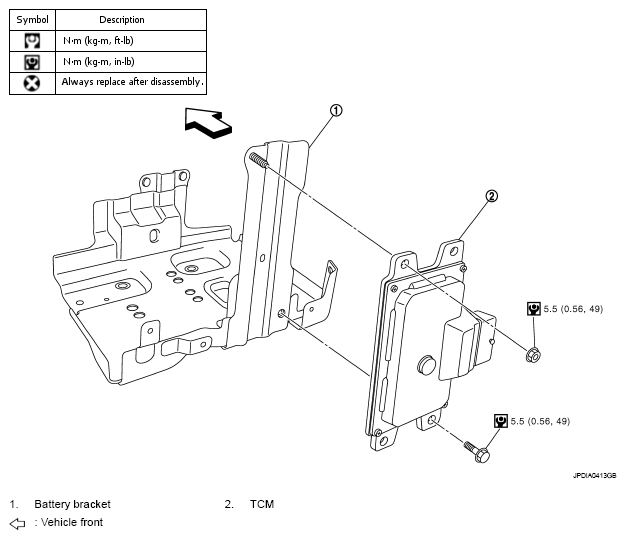

Fig 1: Exploded View Of Transmission Control Module With Torque Specifications

G05370042
