WITHOUT MANUAL MODE : Exploded View

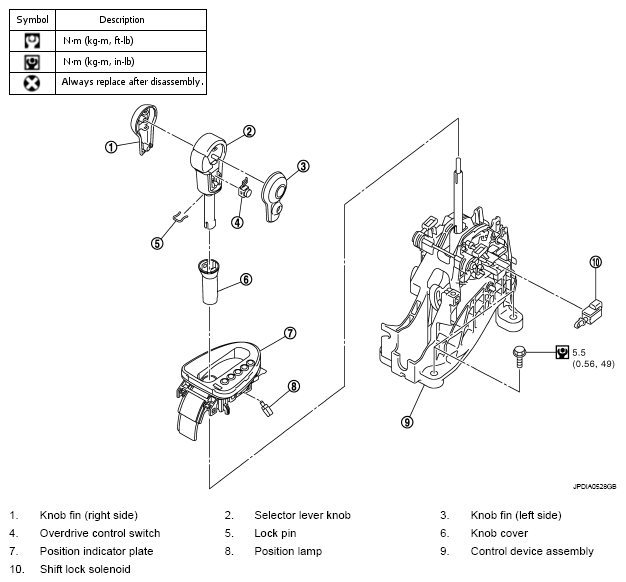

Fig 1: Exploded View Of Control Device (Without Manual Mode) With Torque Specifications

G05370044
