System Description: Notes
- The torque converter clutch piston in the torque converter is engaged to eliminate torque converter slip to increase power transmission efficiency.
- The torque converter clutch control valve operation is controlled by the torque converter clutch solenoid valve, which is controlled by a signal from TCM. The torque converter clutch control valve engages or releases the torque converter clutch piston.
- When shifting between "N" ("P") <=> "D" ("R"), torque converter clutch solenoid valve controls engagement power of forward clutch and reverse brake.

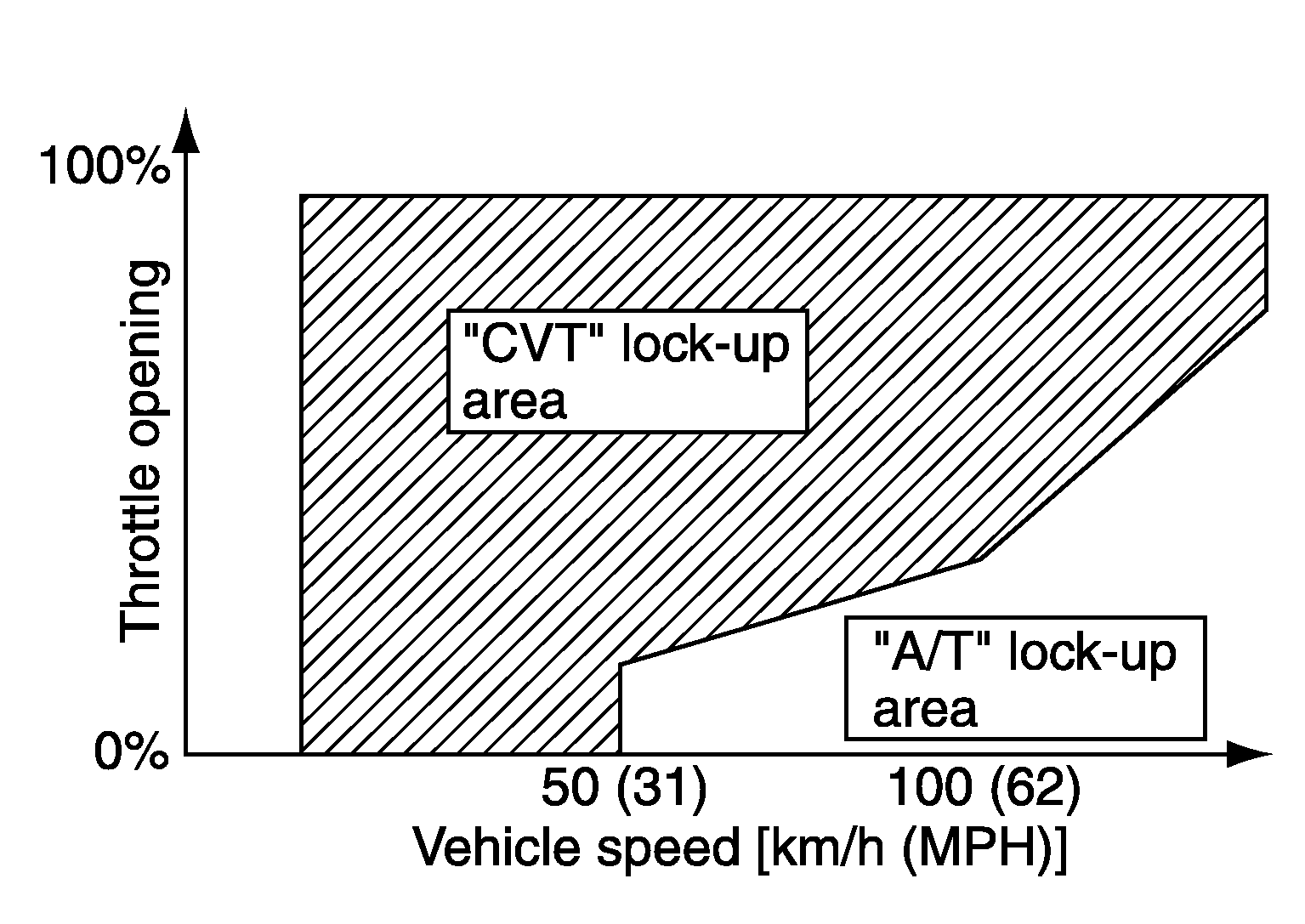

- The lock-up applied gear range was expanded by locking up the torque converter at a lower vehicle speed than conventional CVT models.
