Component Parts Location
Component Parts Location

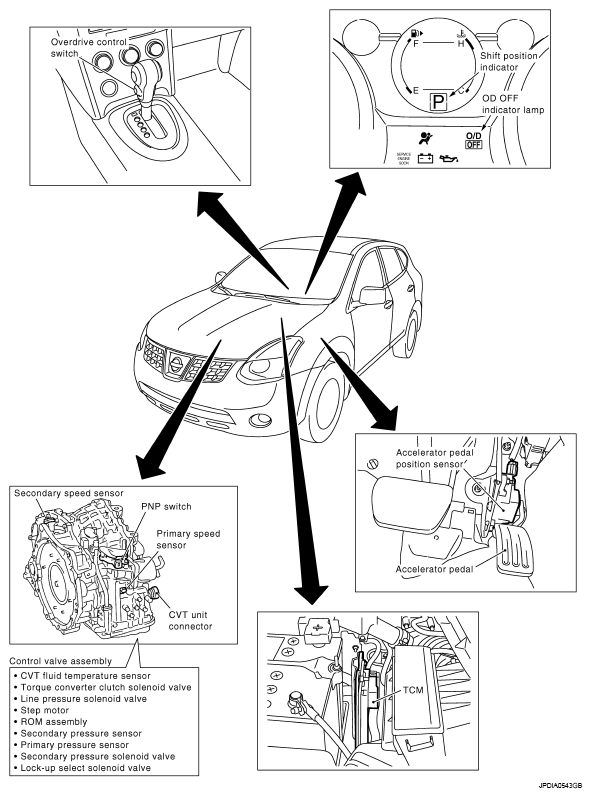

Fig 1: Identifying Control System Components Location (Without Manual Mode)

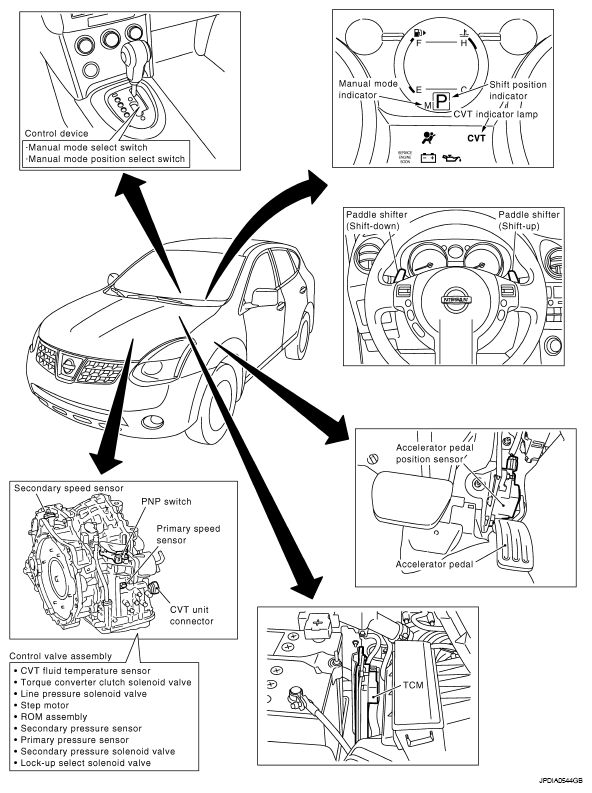

Fig 2: Identifying Control System Components Location (With Manual Mode)
