Nissan-Datsun
>>
2008
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belts
>>
On-Vehicle Repair
>>
Top Tether Strap Child Restraint
>>
Exploded View
Exploded View

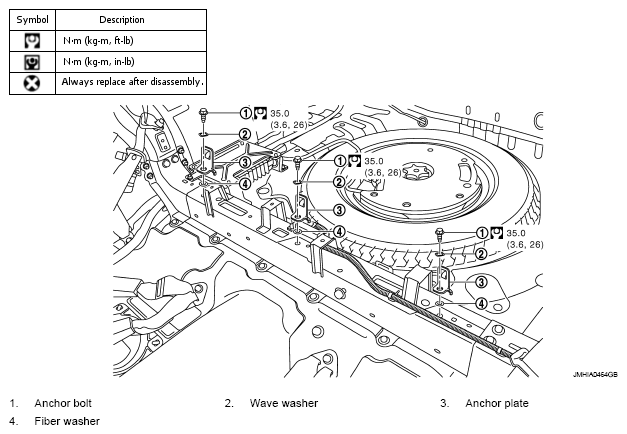

Fig 1: Exploded View Of Top Tether Strap Child Restraint With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
