Engine Control Component Parts/Control Systems Application

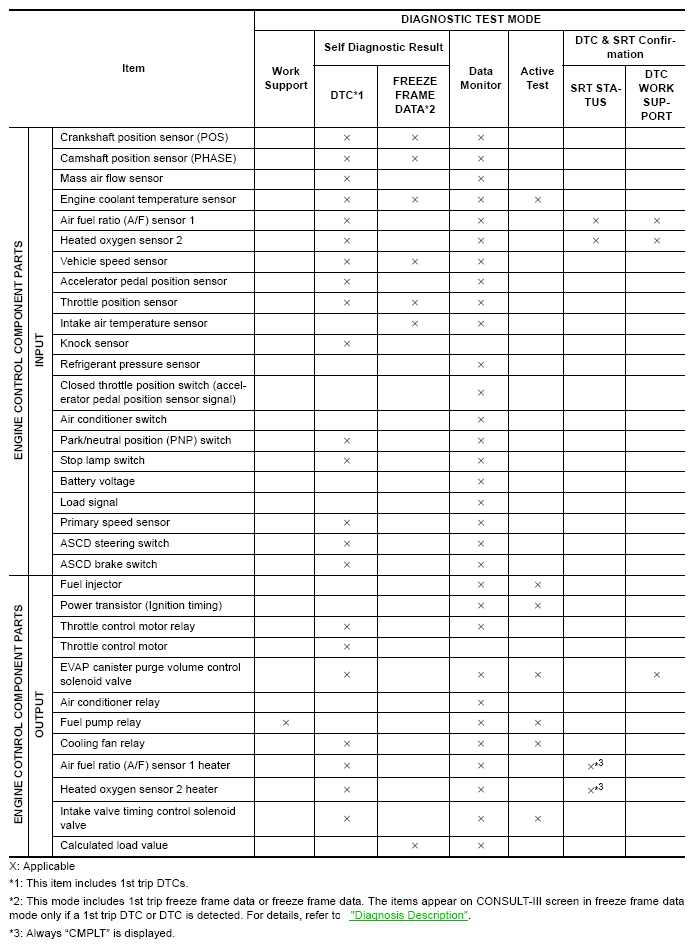

Fig 1: Engine Control Component Parts/Control Systems Application Chart

G05369206
