LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2008
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
On-Vehicle Repair
>>
Oil Cooler
>>
Exploded View
Exploded View

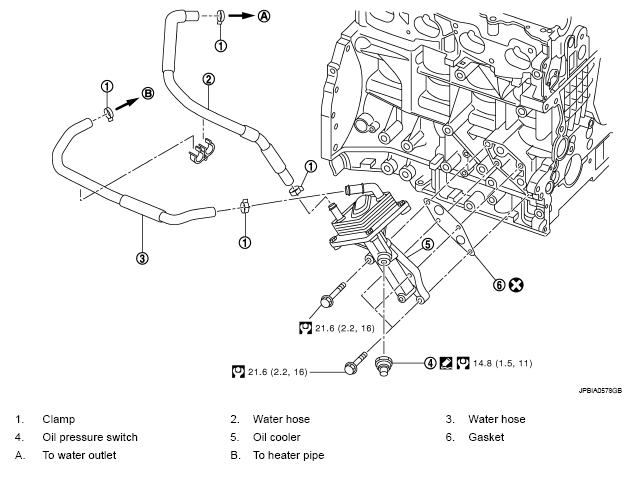

Fig 1: Exploded View Of Oil Cooler
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
