Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

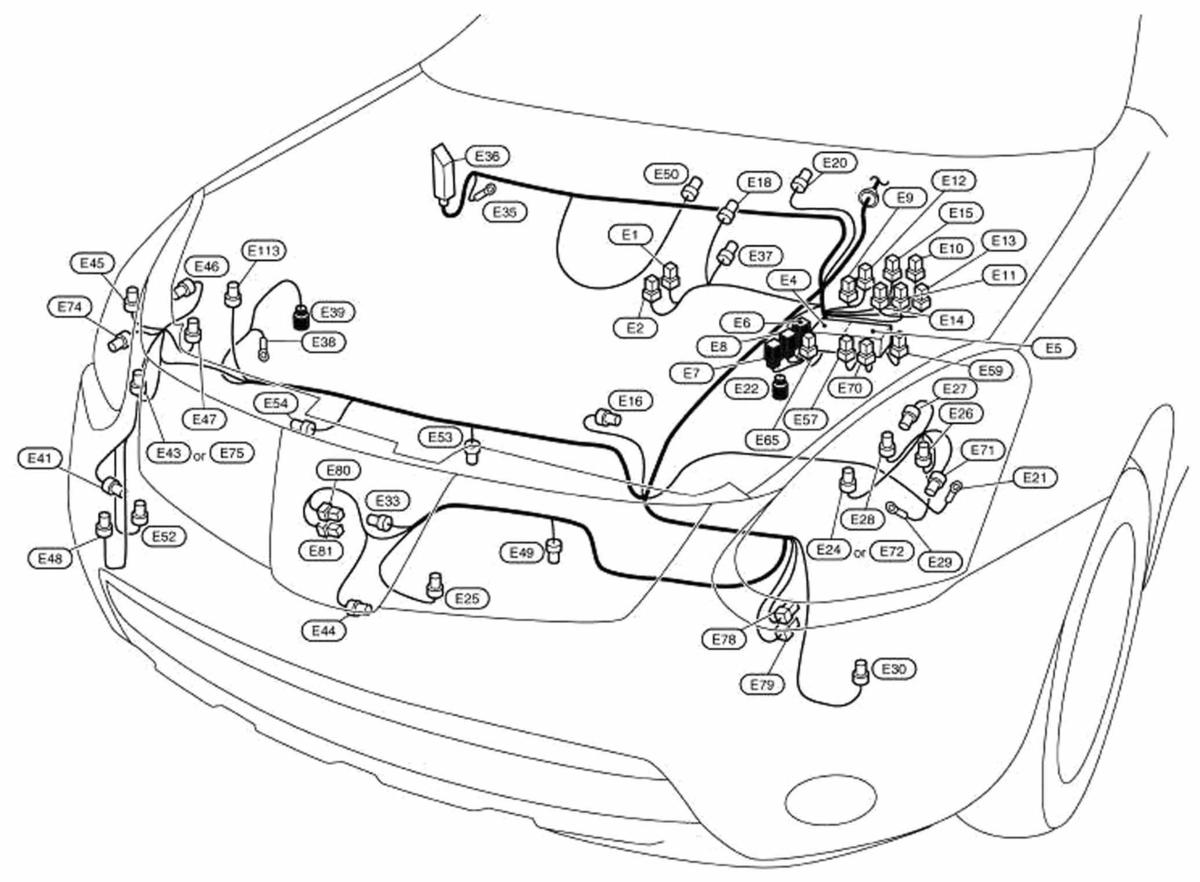

| ABS Actuator & Electric Unit (Control Unit) (E36) | Right rear of engine compartment. See Figure. |

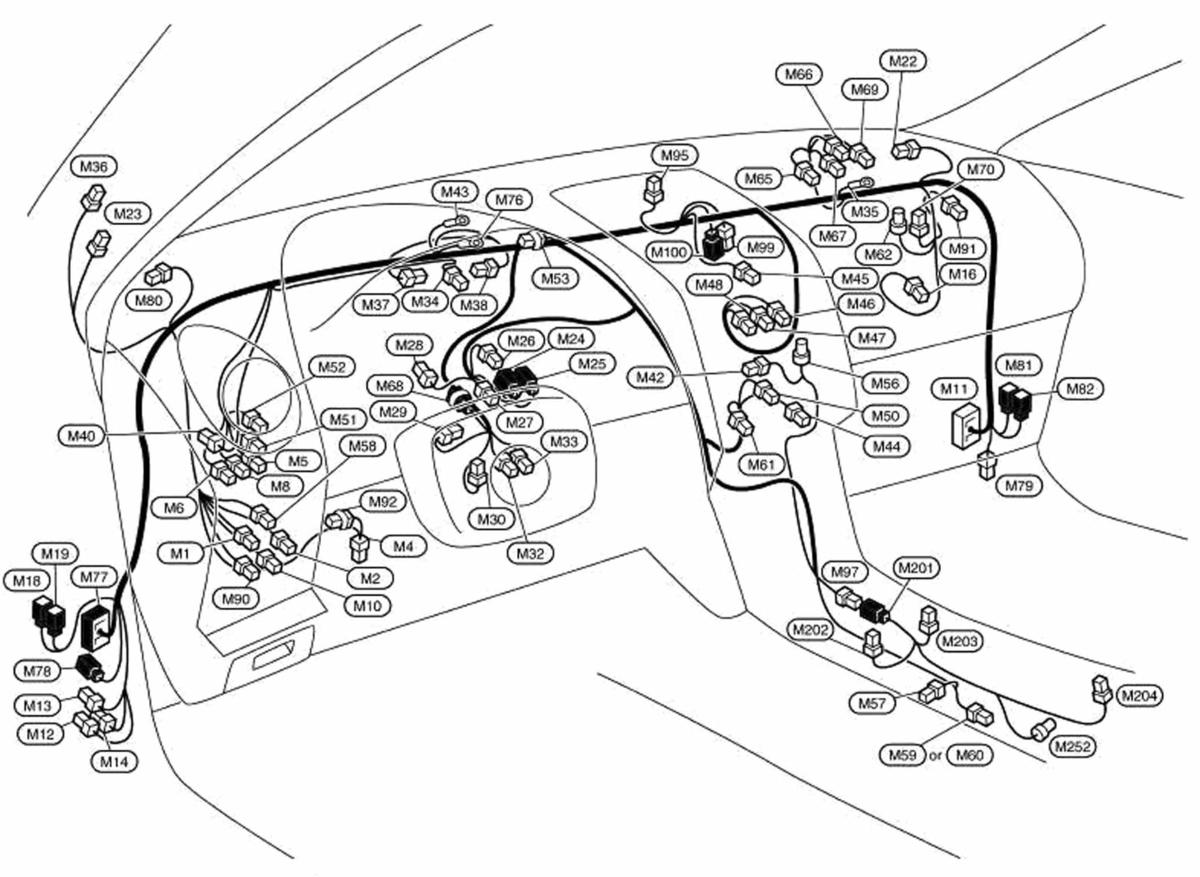

| AWD Control Unit (M69) | Behind left end of dash. See Figure. |
| BCM (Body Control Module) (M65) | Behind left end of dash. See Figure. |
| Control Device (M57) | Under center console. See Figure. |

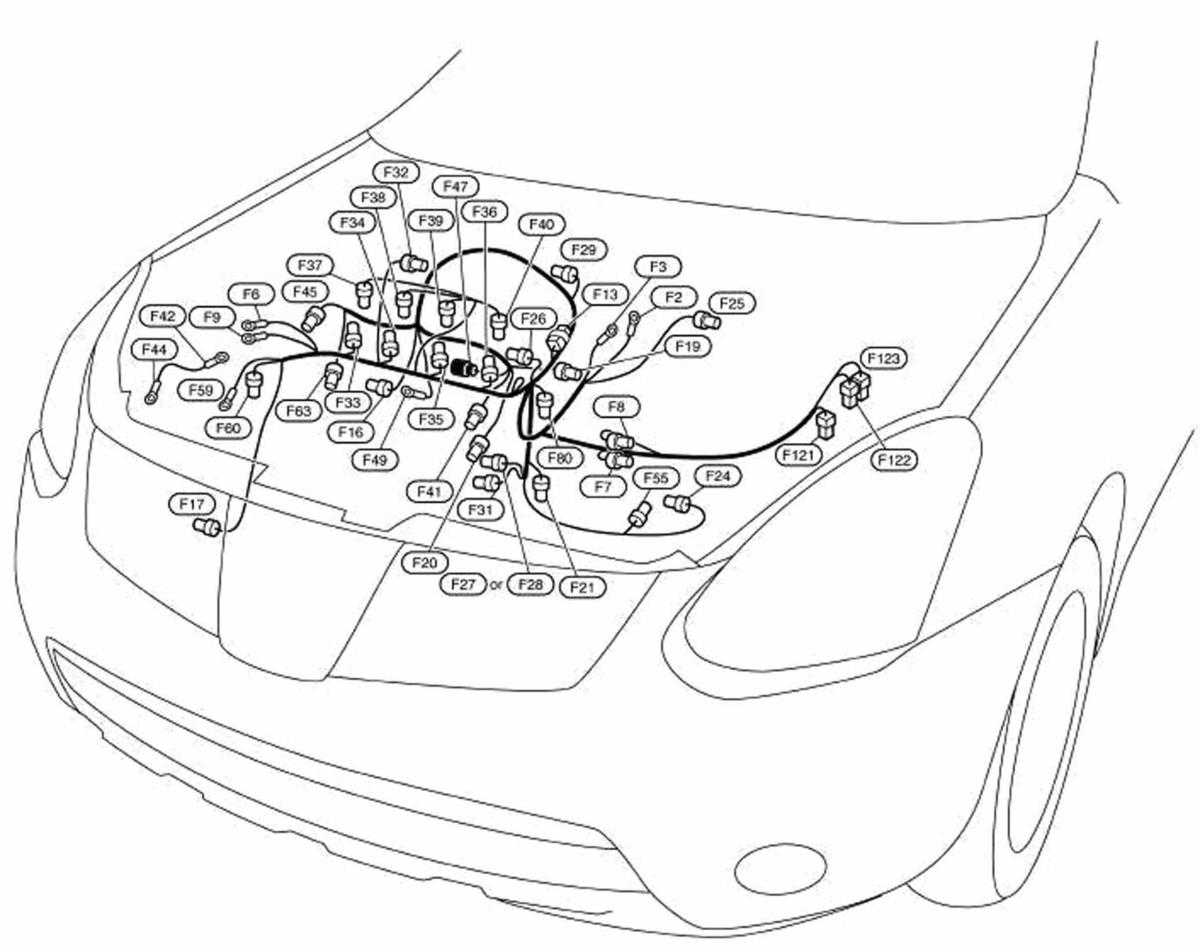

| ECM (F7) | Left side of engine compartment. See Figure. |
| EPS Control Unit (M37) | Behind left side of dash. See Figure. |
| Intelligent Key Unit (M40) | Behind left end of dash. See Figure. |

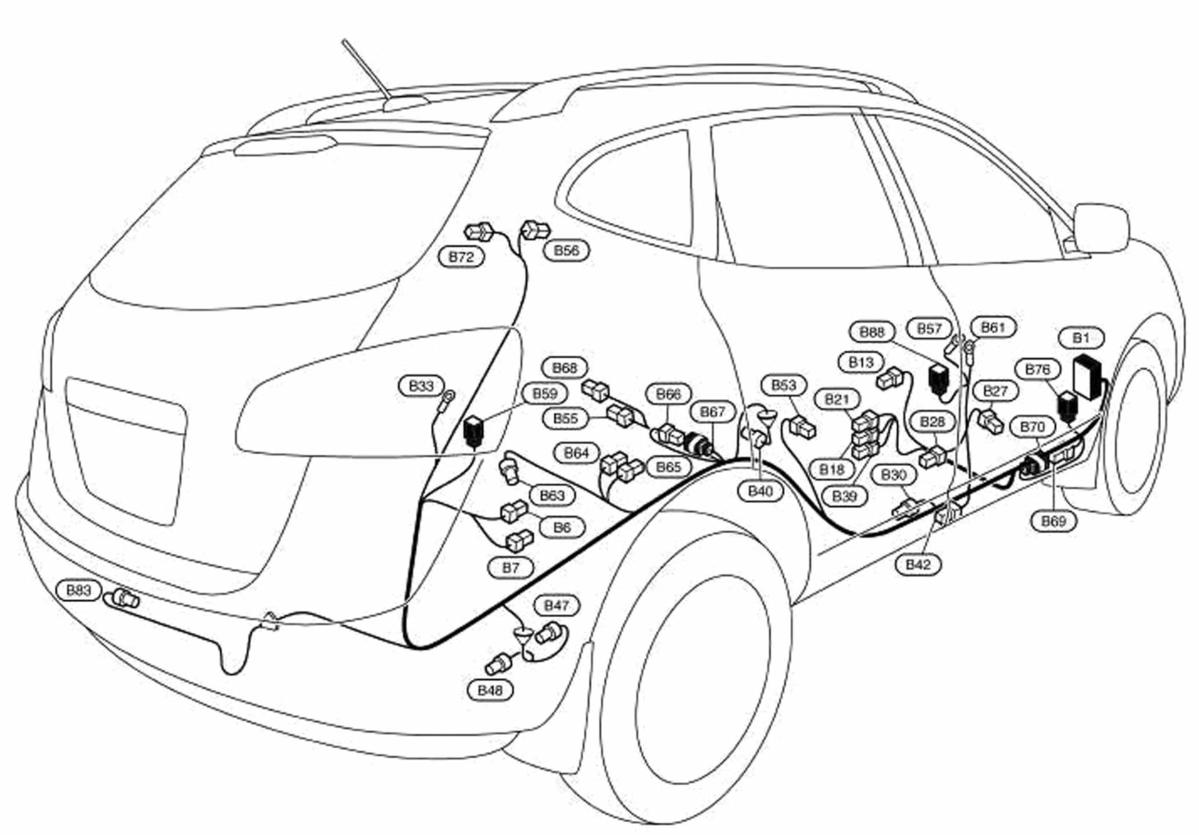

| Occupant Classification System Control Unit (B39) | Under front passenger's seat. See Figure. |
| TCM (Transmission Control Module) (F25) | Left rear of engine compartment. See Figure. |
