Exploded View: Removal

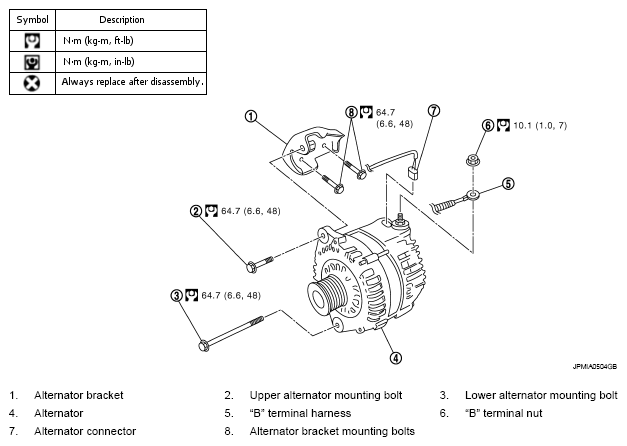

Fig 1: Alternator Replacement Components With Torque Specifications

G05372905
