G Sensor
>>
Exploded View
Exploded View

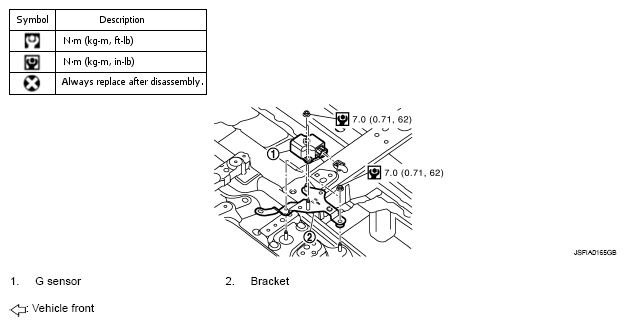

Fig 1: G Sensor And Bracket With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
