Home
>>
Nissan-Datsun
>>
2008
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
On-Vehicle Repair
>>
Side Window Glass
>>
Exploded View
Exploded View

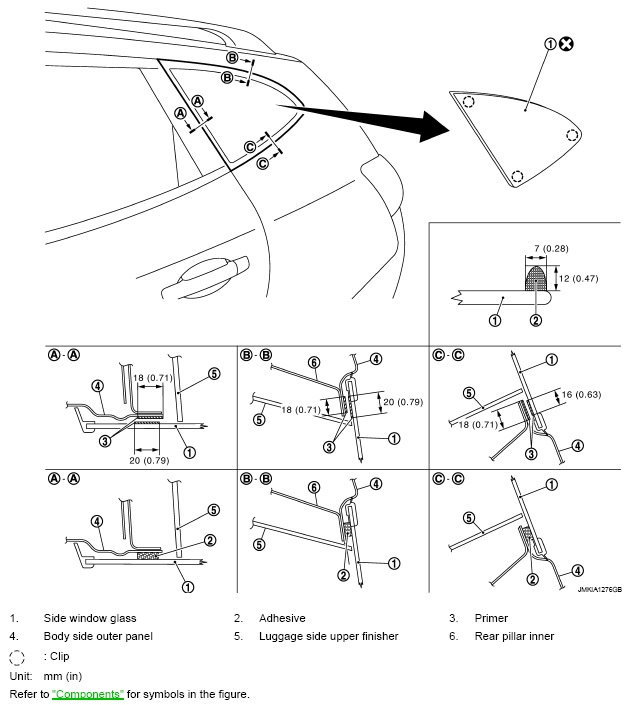

Fig 1: Exploded View Of Side Window Glass
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
