Component Parts Location

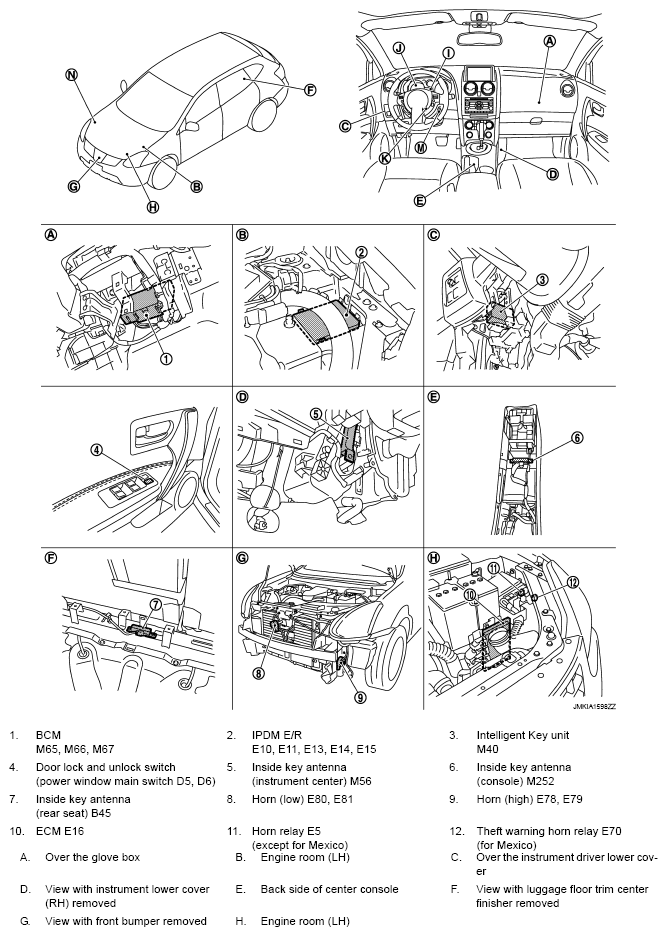

Fig 1: Identifying Intelligent Key System/Engine Start Component Parts Location (1 Of 2)
G05371778

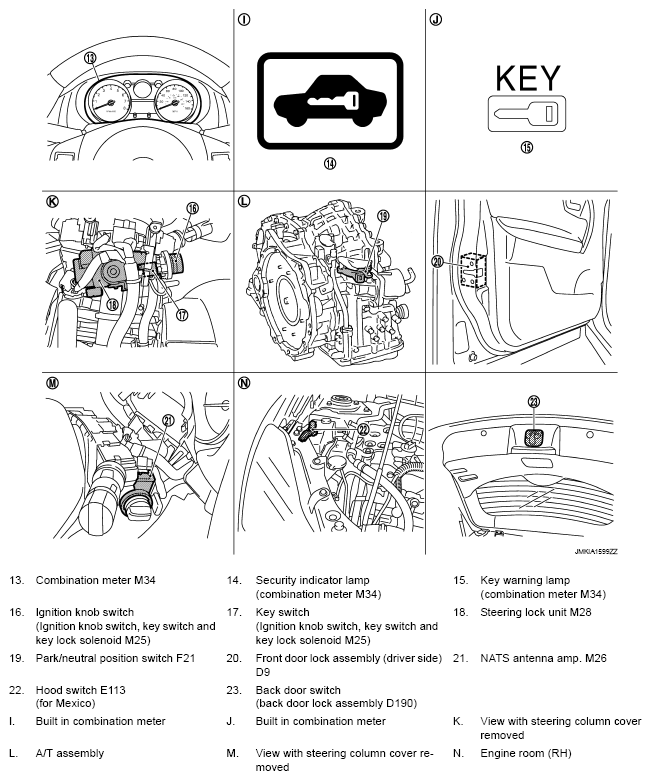

Fig 2: Identifying Intelligent Key System/Engine Start Component Parts Location (2 Of 2)
G05371779
