Exploded View

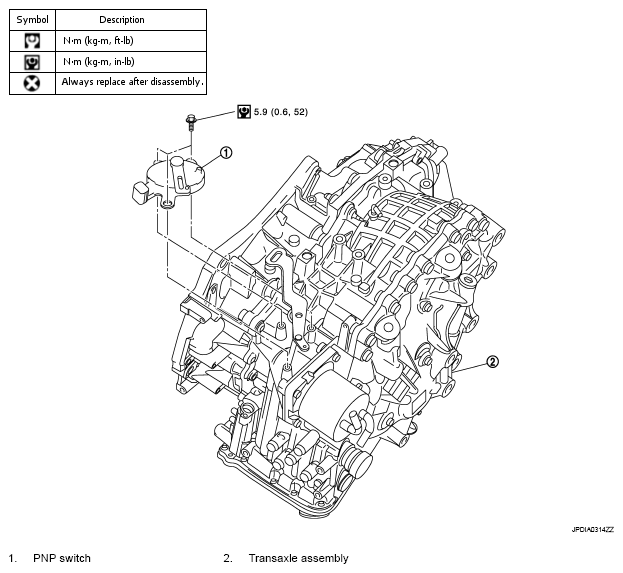

Fig 1: Exploded View Of Park/Neutral Position Switch With Torque Specifications

G05370070
