Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• Temporarily install adjust holder (A) to key interlock rod (B). Install casing cap (C) to cable bracket (D) on control device assembly.
  CAUTION:

  • Never bend or twist key interlock cable excessively when installing.
  • Check that casing caps is firmly secured in cable bracket on control device assembly after installing key interlock cable to cable bracket on control device assembly.
  • If casing cap is loose [less than 39.2 N (4.0 kg, 8.8 lb) removing force], replace key interlock cable.

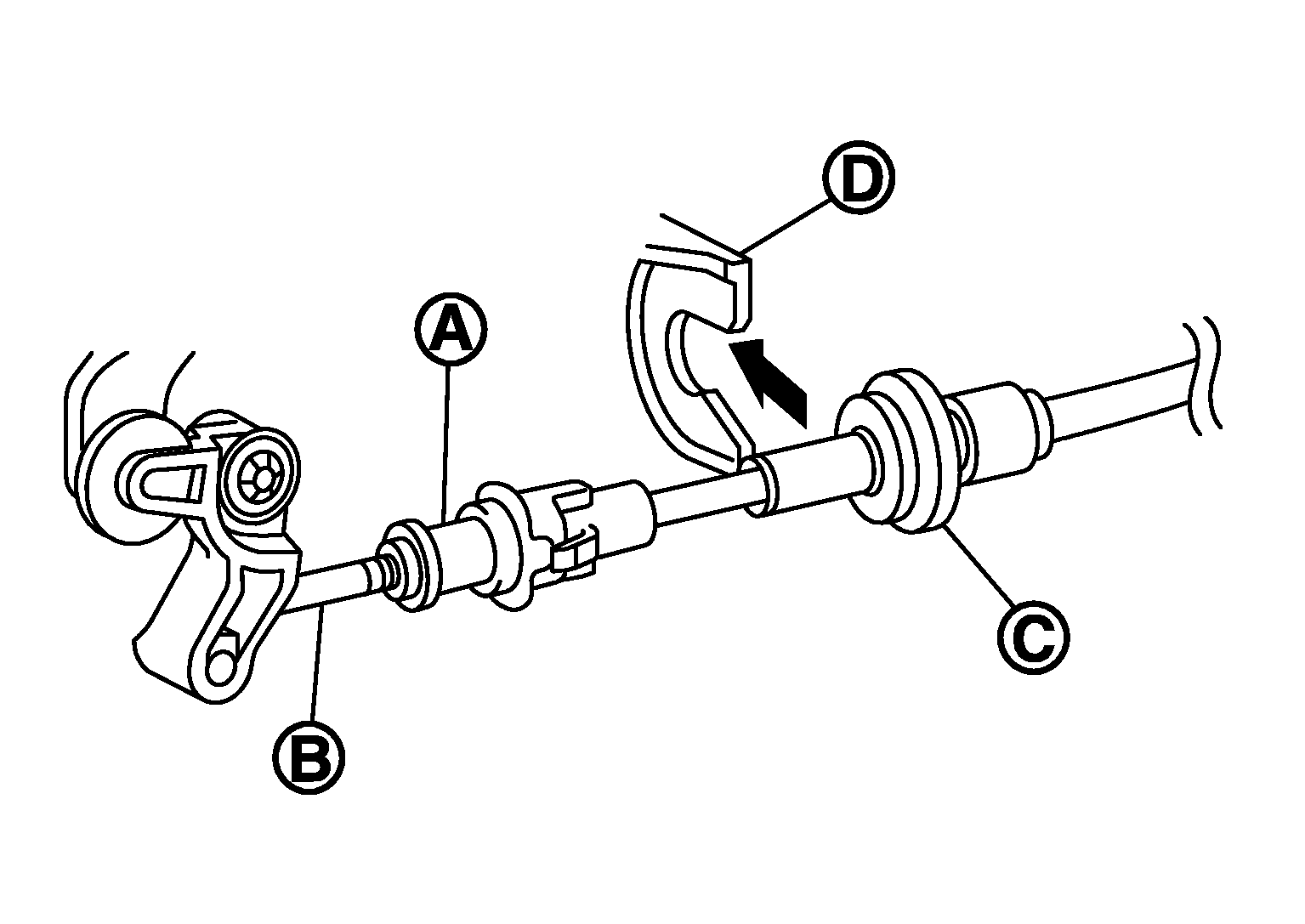

    Fig 1: Identifying Adjust Holder, Casing Cap And Key Interlock Rod


• With the detent rod (A) pressed fully to the end, slider the key interlock cable slider (B) to the key interlock rod side (C), and install adjust holder (D) and key interlock rod.
  CAUTION:

  • Never press tabs when holding slider.
  • Never apply any force at a right angle to key interlock rod when sliding.

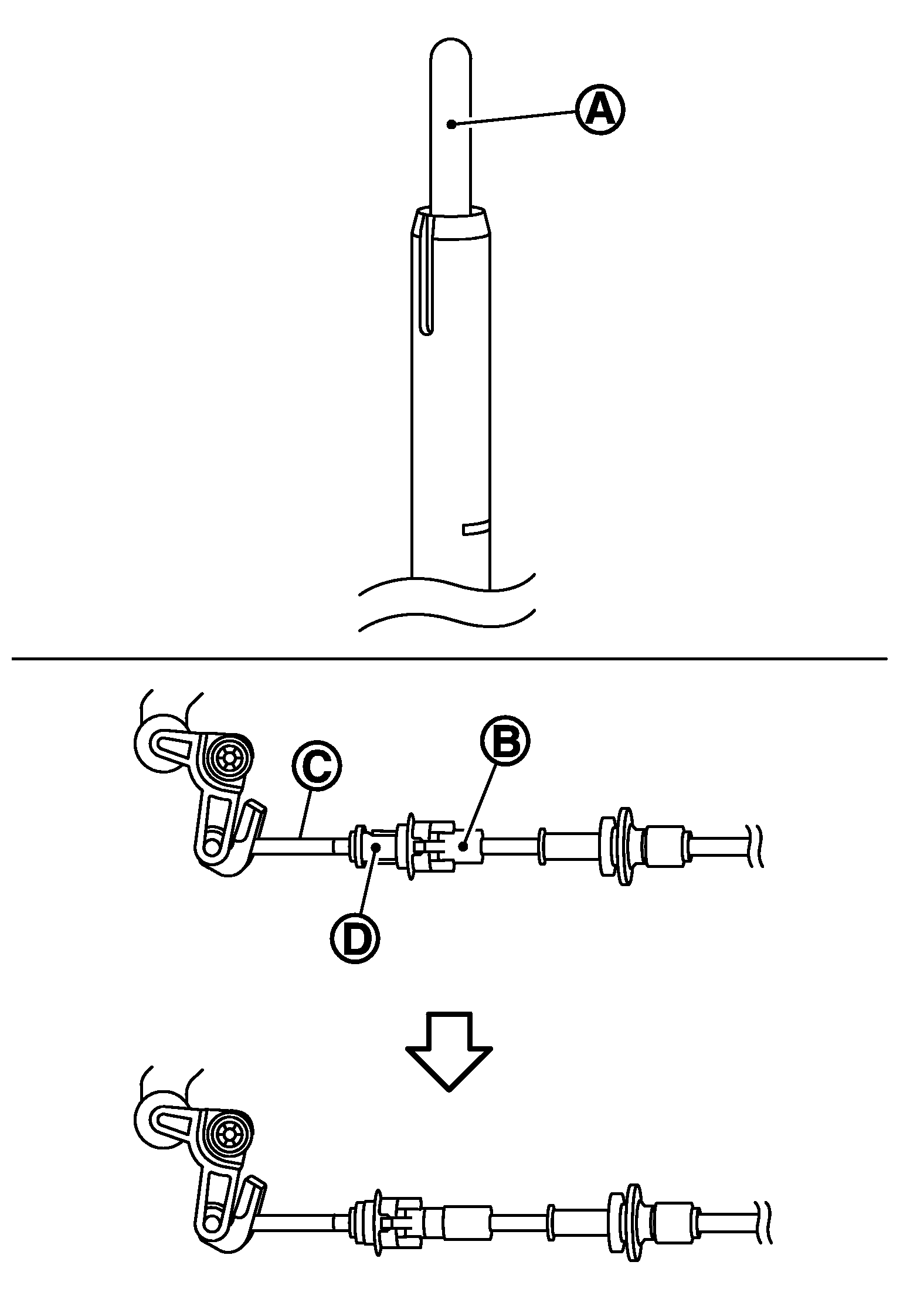

    Fig 2: Identifying Key Interlock Cable Slider, Key Interlock Rod And Adjust Holder
