Removal and Installation: Installation

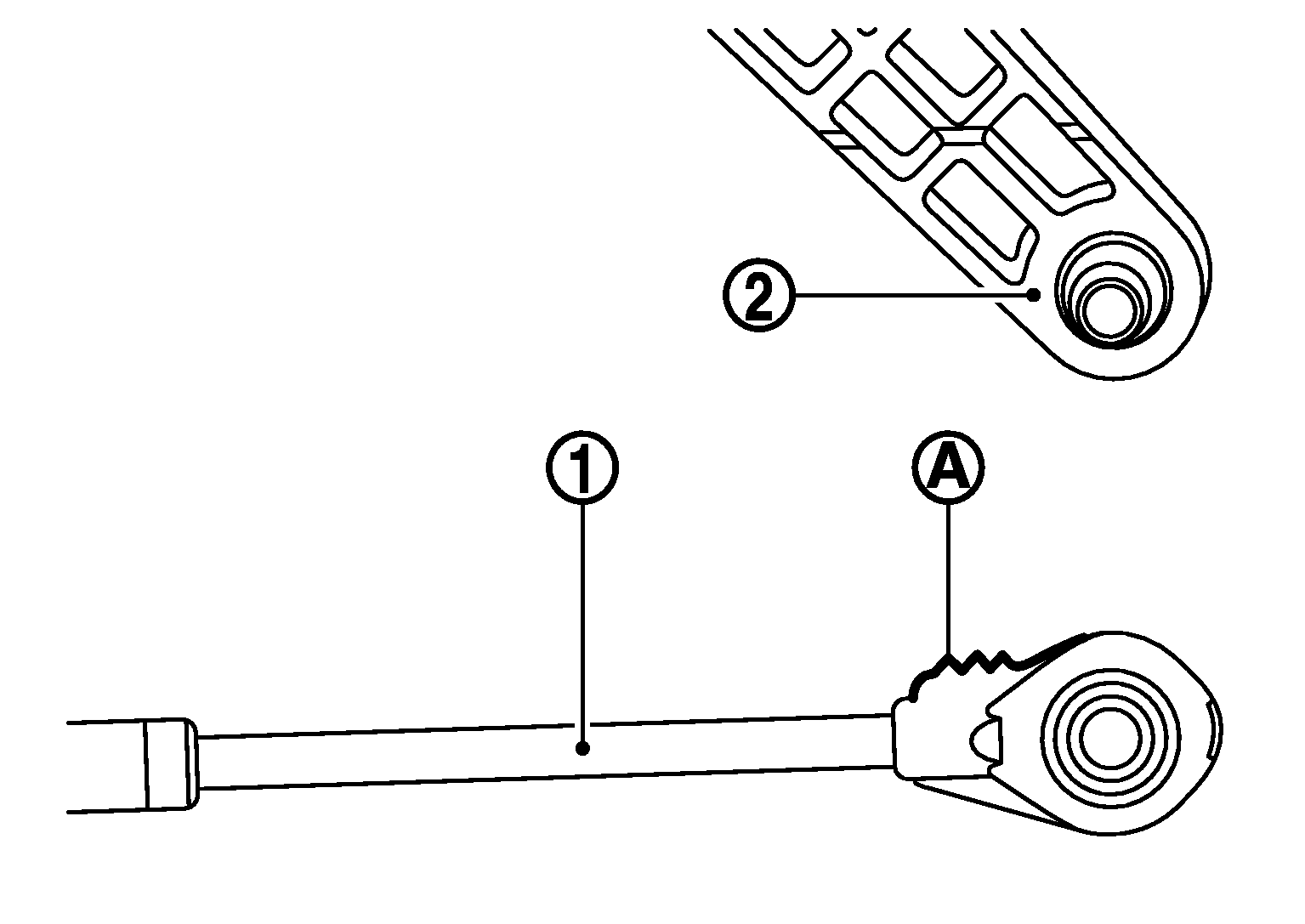

Note the following, and install in the reverse order of removal. When installing control cable (1) to control device assembly (2), make sure that control cable is fully pressed in with the ribbed (A) surface facing upward.
