Home >> Nissan-Datsun >> 2008 >> Rogue S, AWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Function Diagnosis >> Shift Lock System >> Component Parts Location

Component Parts Location

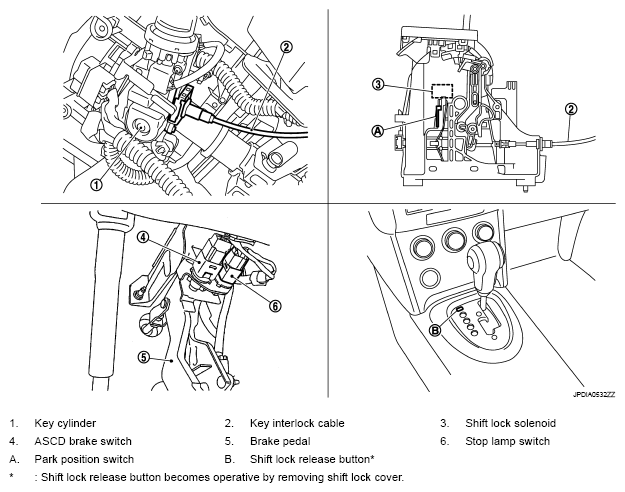

Fig 1: Identifying Shift Lock System Components Location

G05369977
