System - Engine Mechanical & Other
System - Engine Mechanical & Other

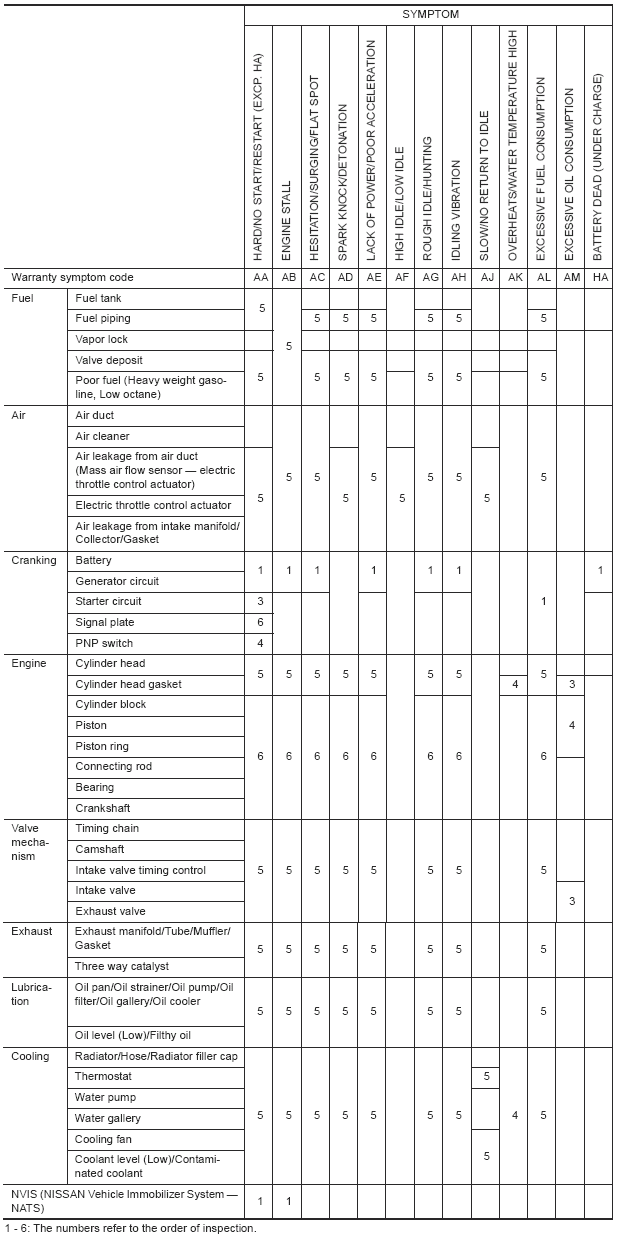

Fig 1: Engine Mechanical & Other - Symptom Matrix Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
