Engine Control System - Introduction (VQ40DE)
>>
Function Diagnosis
>>
On Board Diagnostic (OBD) System
>>
CONSULT-III Function (ENGINE)
>>
Engine Control Component Parts/Control Systems Application
Engine Control Component Parts/Control Systems Application

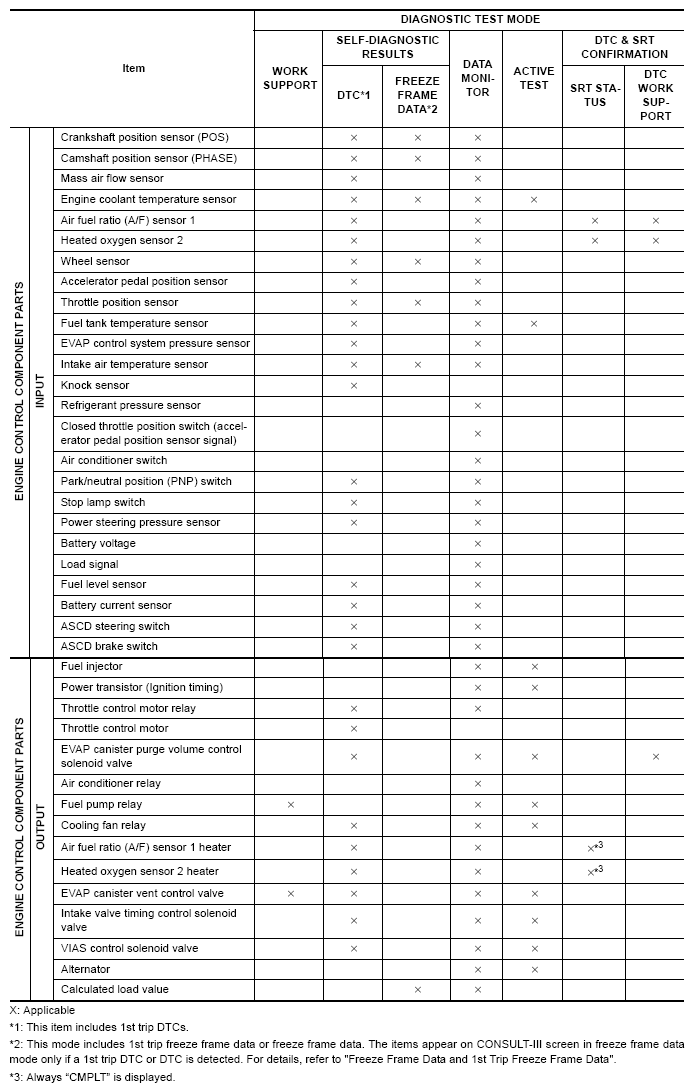

Fig 1: Engine Control System Components Application Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
