Removal and Installation

Refer to illustration for hydraulic line routing. Remove any components to access lines.

CAUTION: Be careful to not kink or bend lines.

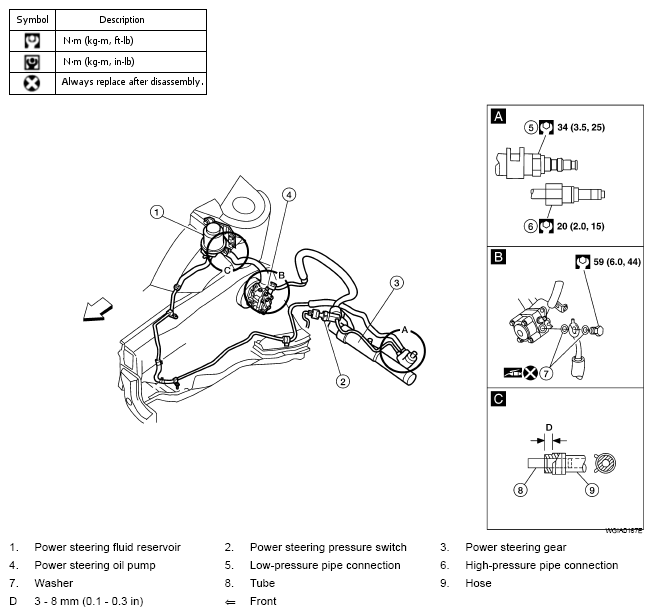

Fig 1: Hydraulic Line Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
