Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten four ground screws on the body.

   Refer to "GROUND INSPECTION ."

   Fig 1: Checking Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO  2.

NG: Repair or replace ground connections.

Loosen and retighten the air fuel ratio (A/F) sensor 1.

Tightening torque: 40 - 60 N-m (4.1 - 6.1 kg-m, 30 - 44 ft-lb)

>> GO TO  3.

1. Start engine and run it at idle.
2. Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK: GO TO  4.

NG: Repair or replace.

With CONSULT-III

1. Start engine and warm it up to normal operating temperature.
2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-III.
3. Clear the self-learning control coefficient by touching "CLEAR".
4. Run engine for at least 10 minutes at idle speed.

   Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?

   Is it difficult to start engine?

Without CONSULT-III

1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness connector.
   Fig 2: Identifying Mass Air Flow Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Make sure DTC P0102 is displayed.
7. Erase the DTC memory. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION ."
8. Make sure DTC P0000 is displayed.
9. Run engine for at least 10 minutes at idle speed.

   Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?

   Is it difficult to start engine?

Yes or No

YES: Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to "DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION " or "DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION ."

NO: GO TO  5.

1. Turn ignition switch OFF.
2. Disconnect A/F sensor 1 harness connector.

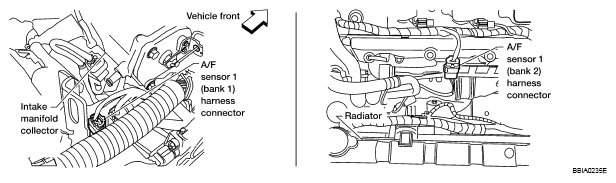

   Fig 3: Identifying A/F Sensor 1 Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check harness connector for water.

   Water should not exist  .

OK or NG

OK: GO TO  6.

NG: Repair or replace harness connector.

1. Turn ignition switch ON.
2. Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-III or tester.

   Voltage: Battery voltage

Fig 4: Checking Voltage Between A/F Sensor 1 Terminal 3 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO  8.

NG: GO TO  7.

Check the following.

• Harness connectors M70, F58
• Fuse block (J/B) connector M4
• 15A fuse
• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
   A/F SENSOR AND ECM TERMINALS SPECIFICATION



   	A/F sensor 1 terminal	ECM terminal
   Bankl	1	16
   	2	75
   	5	35
   	6	56
   Bank 2	1	76
   	2	77
   	5	57
   	6	58

   Continuity should exist  .

4. Check harness continuity between the following terminals and ground.

   Refer to Wiring Diagram.

   A/F SENSOR BANK 1 AND BANK 2 SPECIFICATION



   Bank l		Bank 2
   A/F sensor 1 terminal	ECM terminal	A/F sensor 1 terminal	ECM terminal
   1	16	1	76
   2	75	2	77
   5	35	5	57
   6	56	6	58

   Continuity should not exist  .

5. Also check harness for short to power.

OK or NG

OK: GO TO  9.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

Refer to "COMPONENT INSPECTION ."

OK or NG

OK: GO TO  10.

NG: GO TO  11.

Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ."

OK or NG

OK: GO TO  11.

NG: Repair or replace.

Replace malfunctioning A/F sensor 1.

>> INSPECTION END
