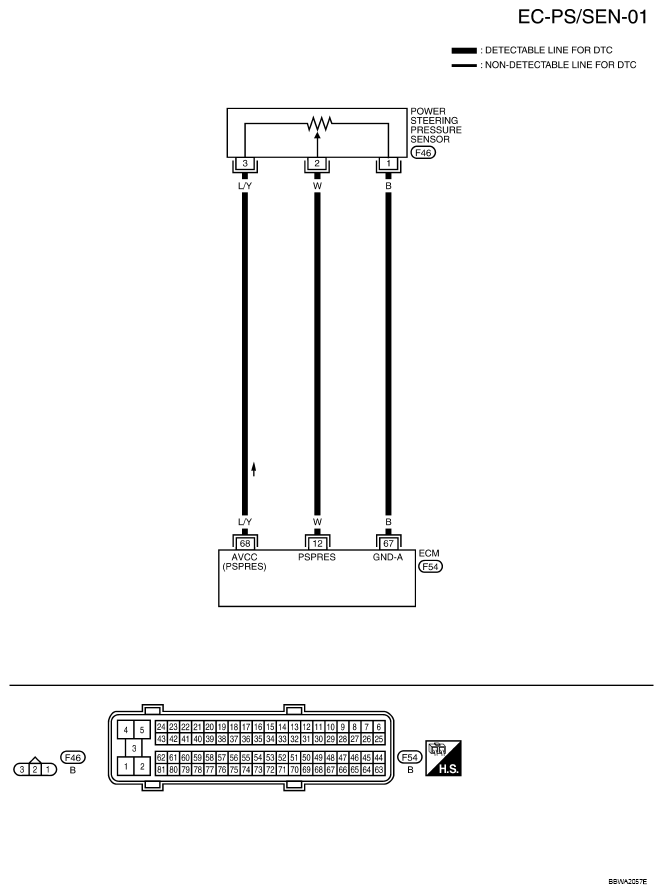

DTC P0550 PSP Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ECM INSPECTION TABLE
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 12 | W | Power steering pressure sensor | [Engine is running]
|
0.5 - 4.5V |
[Engine is running]
|
0.4 - 0.8V | |||
| 67 | B | Sensor ground | [Engine is running]
|
Approximately 0V |
| 68 | L/Y | Sensor power supply (Power steering pressure sensor) |
[Ignition switch ON] | Approximately 5V |
