Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

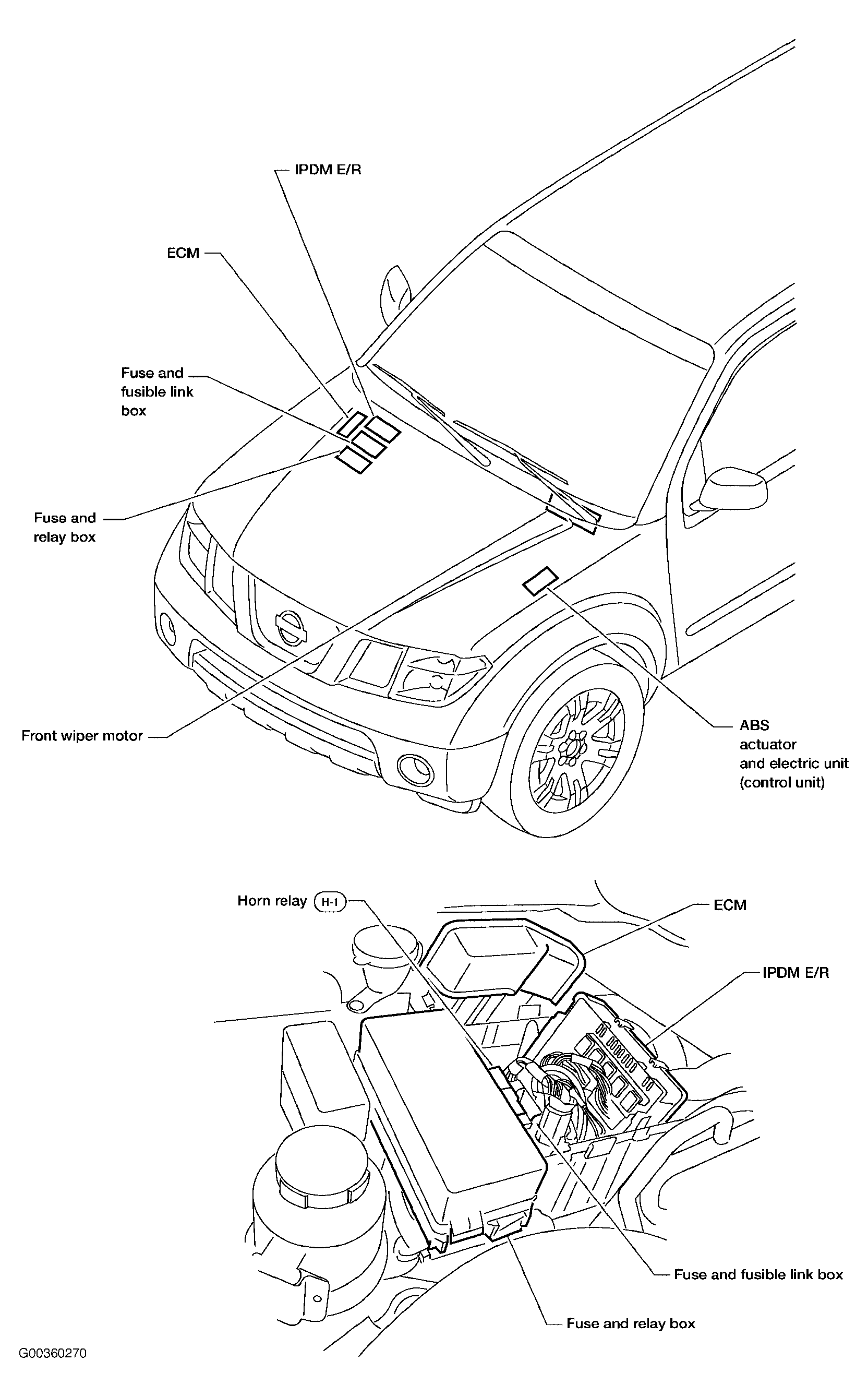

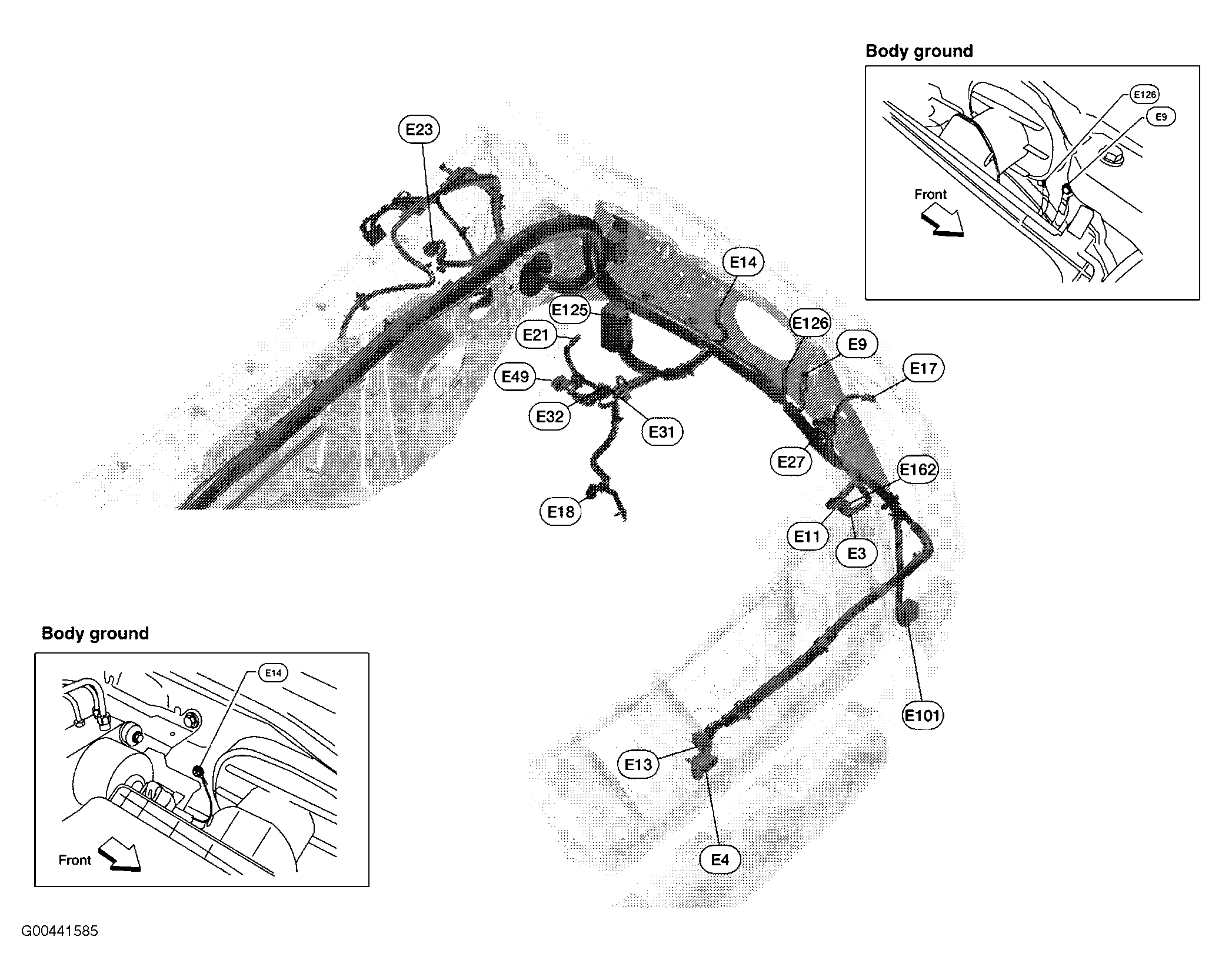

| ABS Actuator & Electric Unit (E125) | Left rear corner of engine compartment. See Figure. |

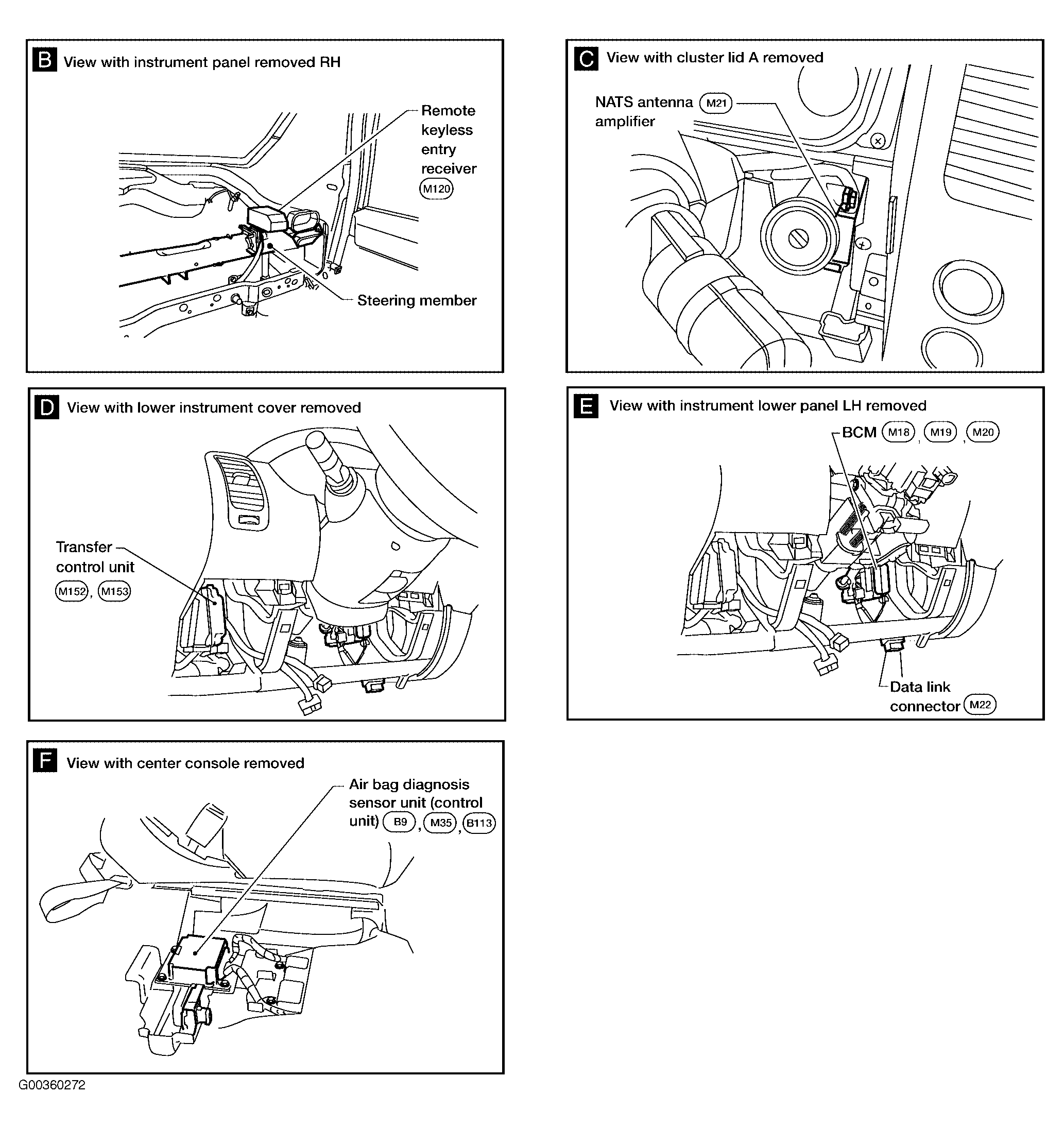

| Air Bag Diagnosis Sensor Unit | Under center console. See Figure. |

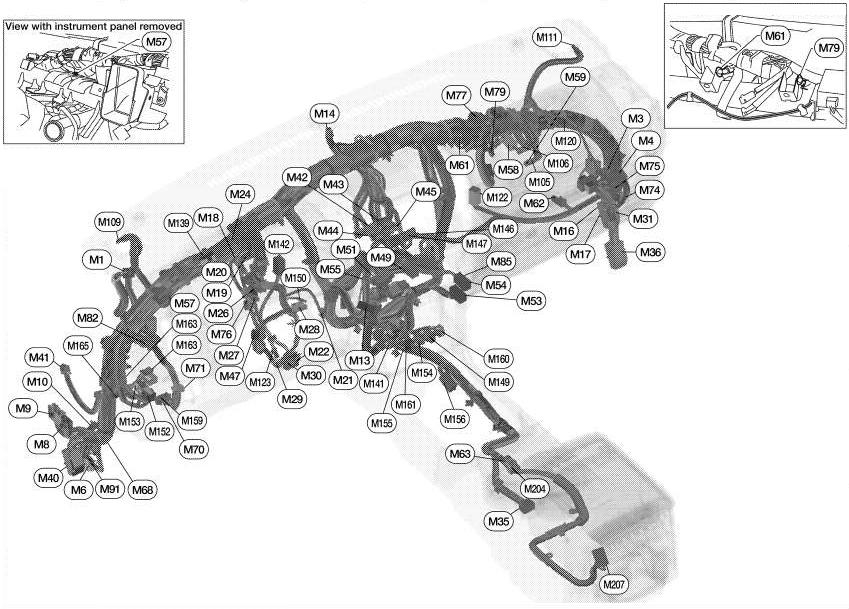

| A/T Device (M156) | In center console. See Figure. |
| BCM | Under center of dash. See Figure. |
| Engine Control Module (ECM) | Right rear of engine compartment. See Figure. |
| Transfer Case Control Unit | Behind left side of dash. See Figure. |
