Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

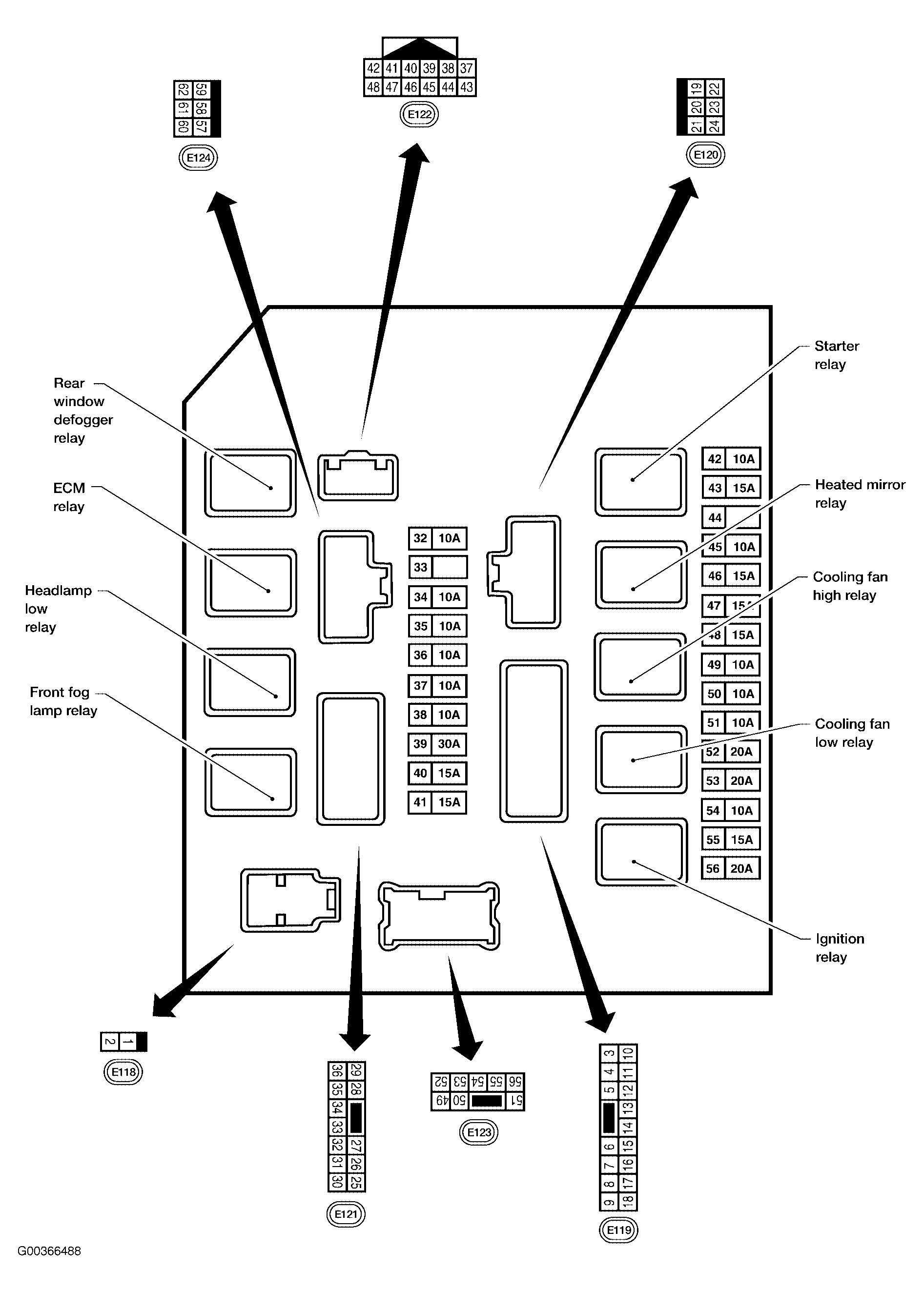

Fig 1: Intelligent Power Distribution Module

G00366488

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Right Side Of Engine Compartment

G00441583

Courtesy of NISSAN MOTOR CO., U.S.A.

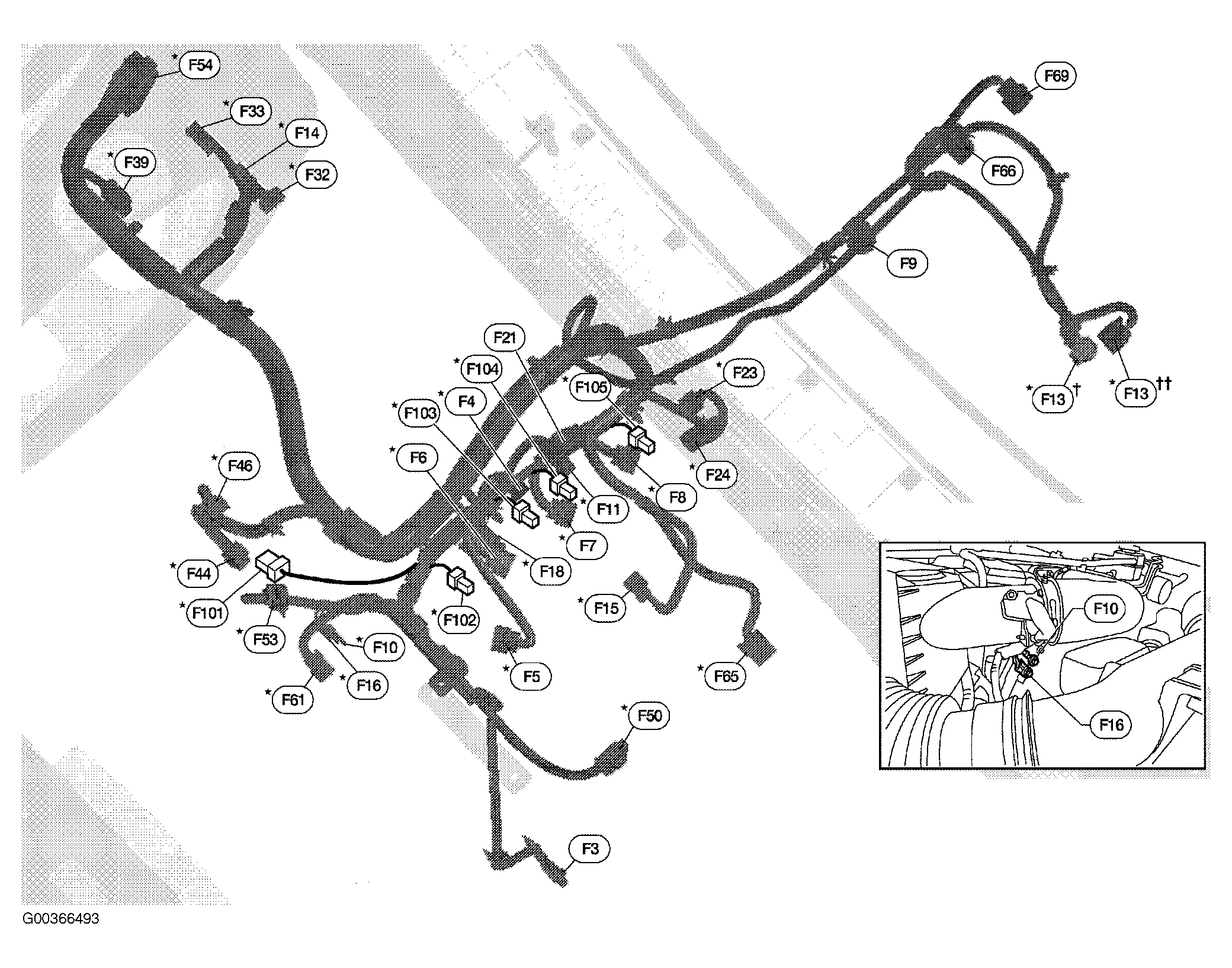

Fig 3: Engine Harness (2.5L)

G00366493

Courtesy of NISSAN MOTOR CO., U.S.A.

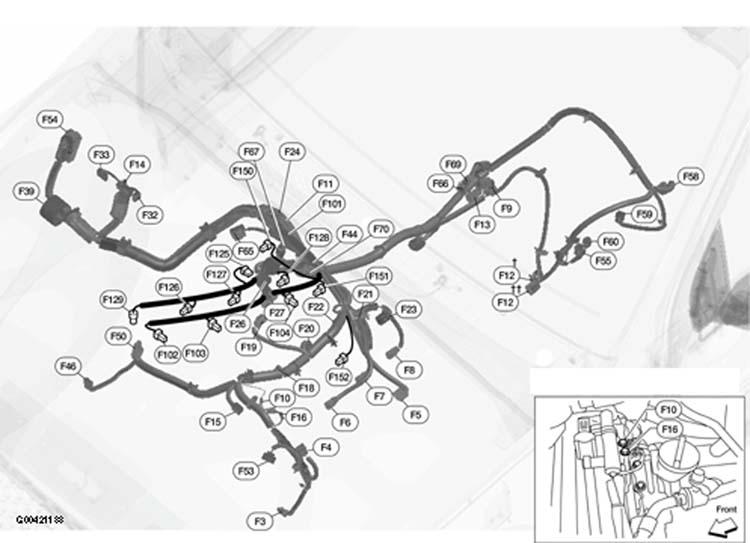

Fig 4: Engine Harness (4.0L)

G00421183

Courtesy of NISSAN MOTOR CO., U.S.A.

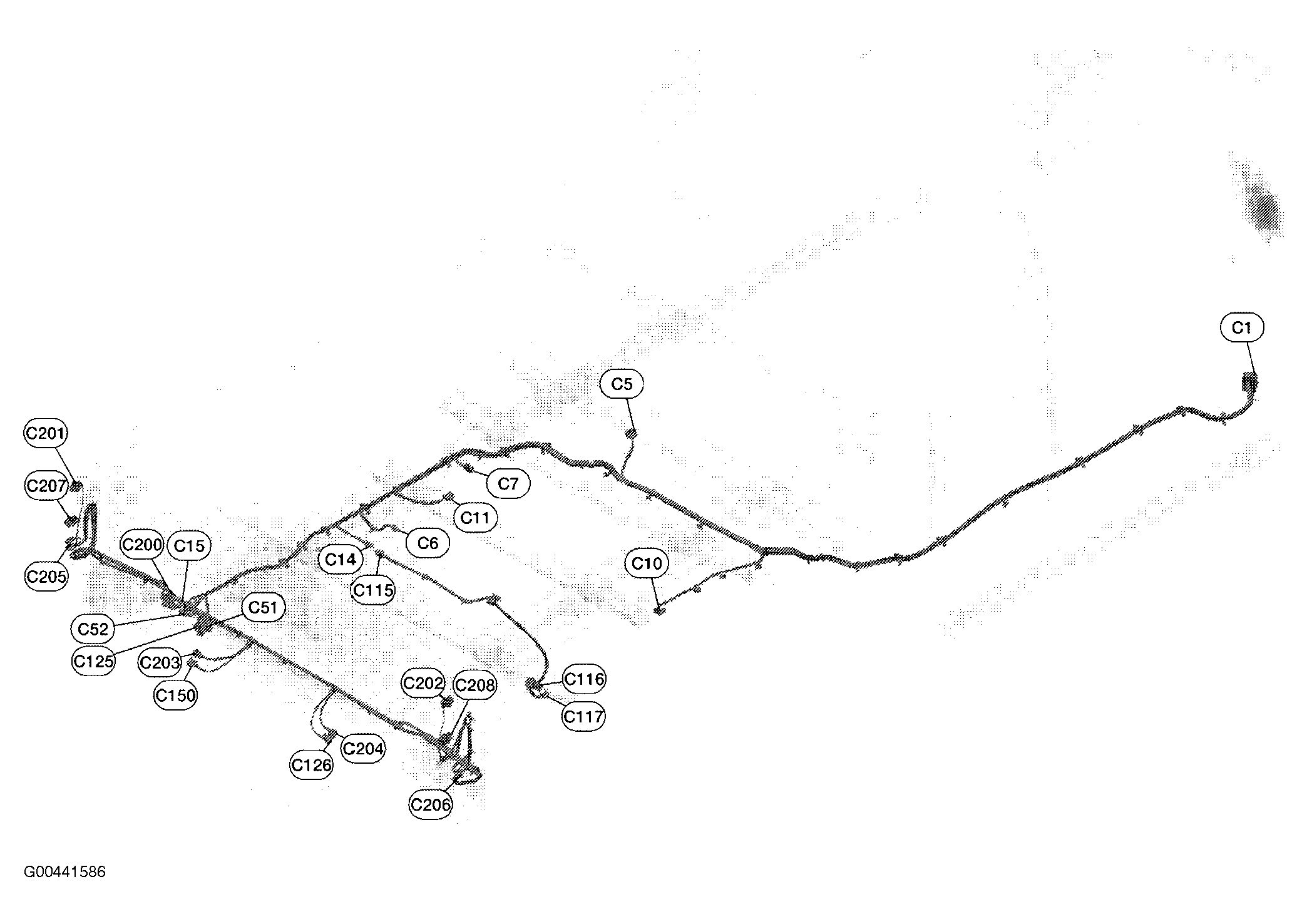

Fig 5: Rear Of Vehicle

G00441586

Courtesy of NISSAN MOTOR CO., U.S.A.

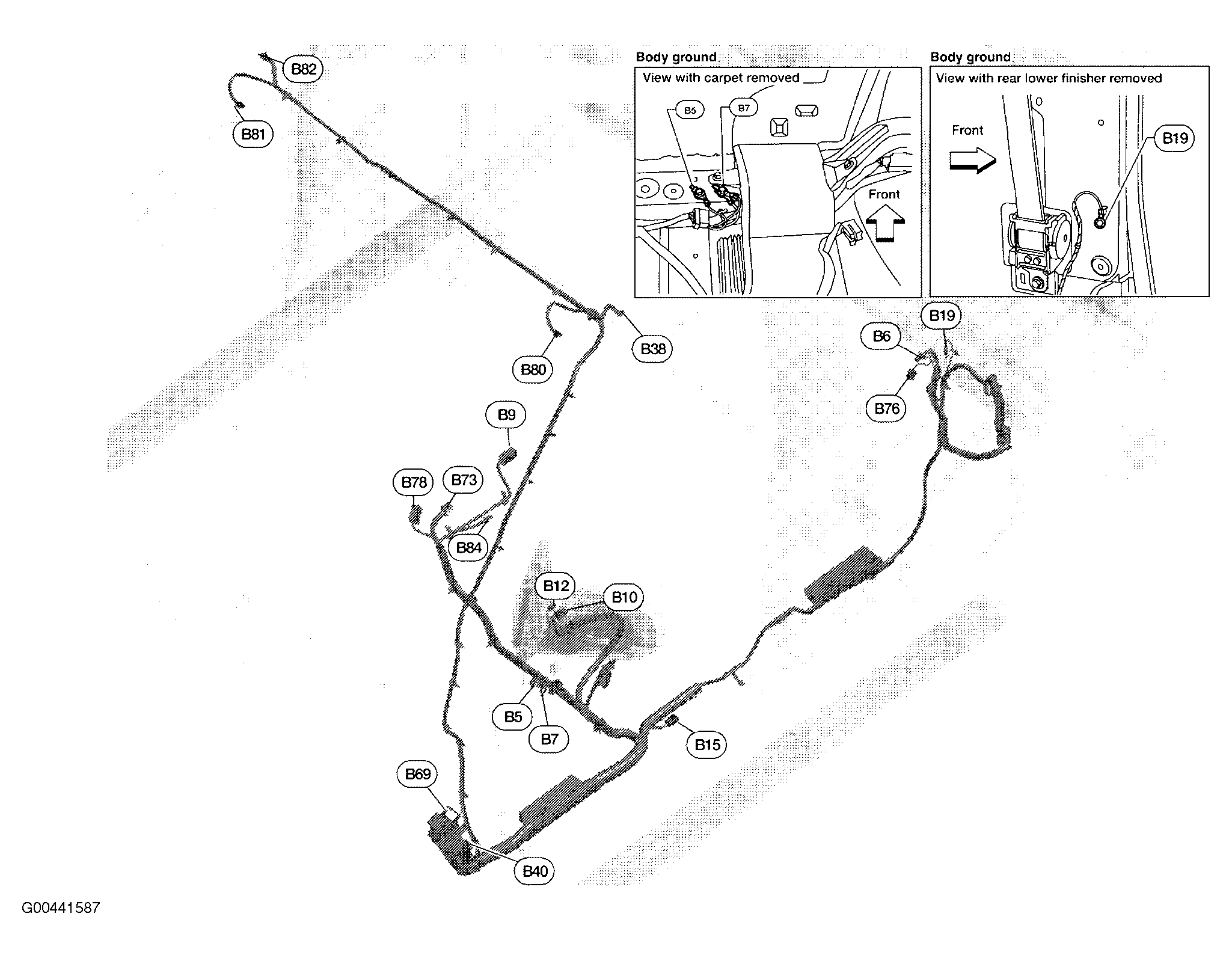

Fig 6: Left Side Of Passenger Compartment (King Cab)

G00441587

Courtesy of NISSAN MOTOR CO., U.S.A.

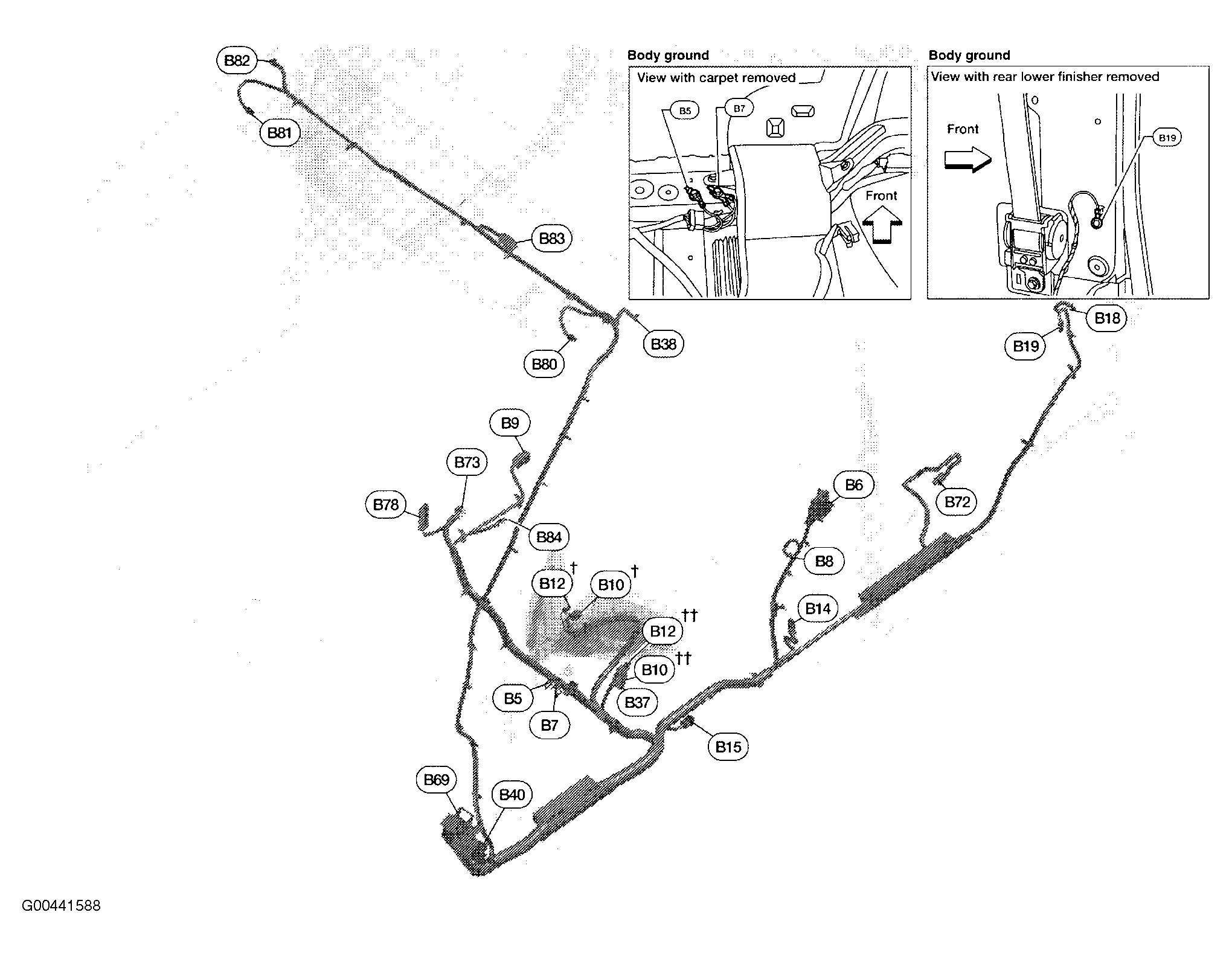

Fig 7: Left Side Of Passenger Compartment (Crew Cab)

G00441588

Courtesy of NISSAN MOTOR CO., U.S.A.

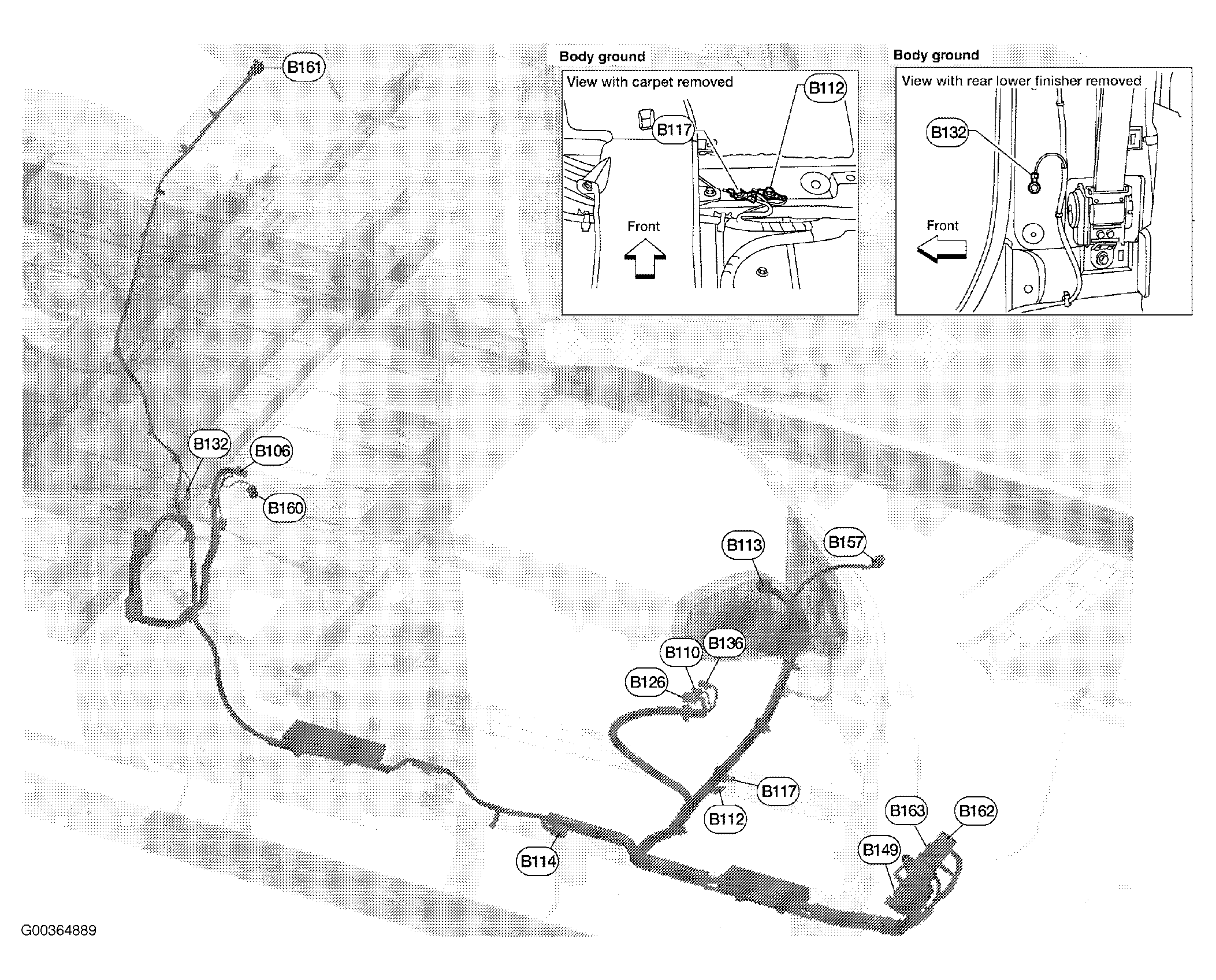

Fig 8: Right Side Of Passenger Compartment (King Cab)

G00364889

Courtesy of NISSAN MOTOR CO., U.S.A.

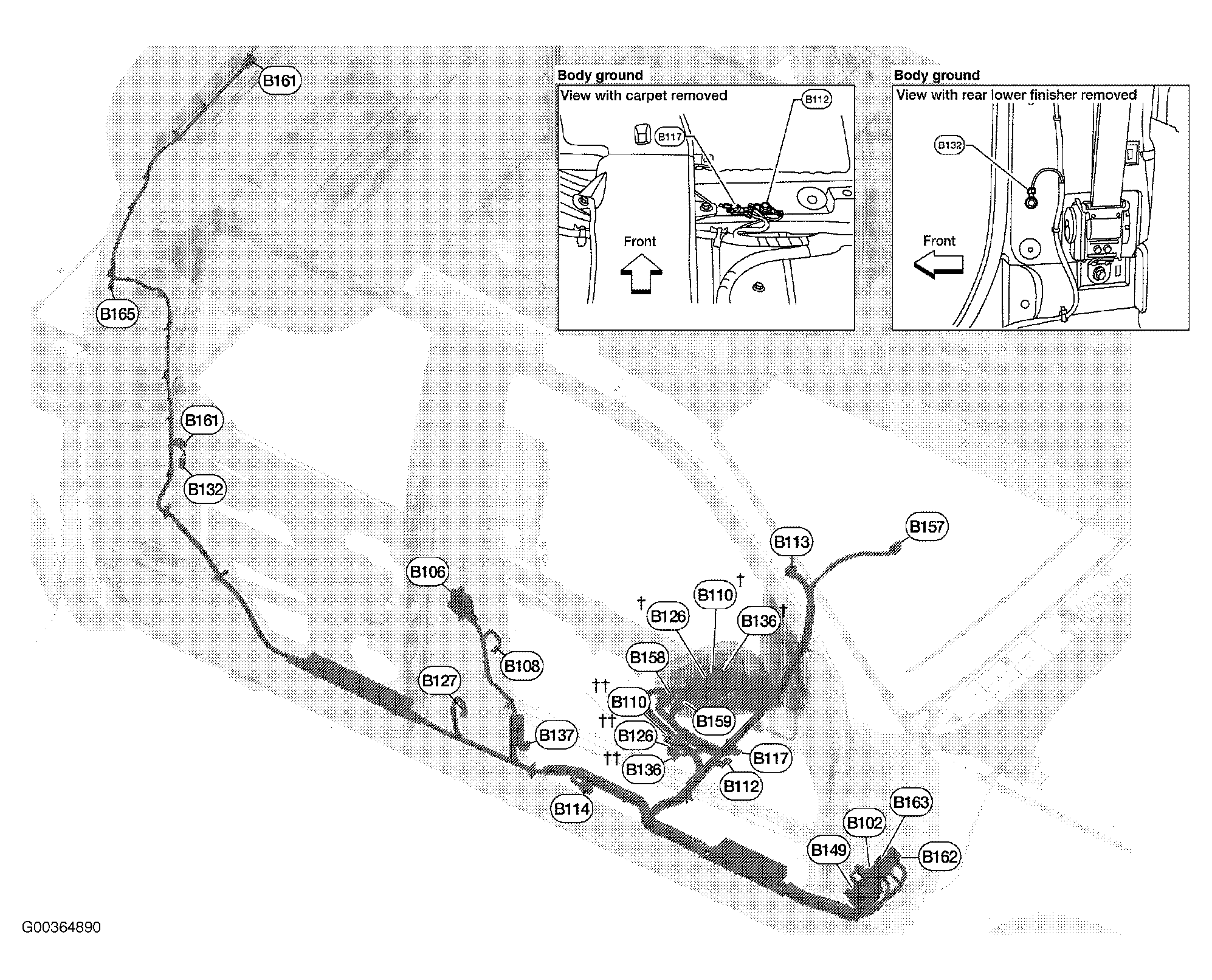

Fig 9: Right Side Of Passenger Compartment (Crew Cab)

G00364890

Courtesy of NISSAN MOTOR CO., U.S.A.

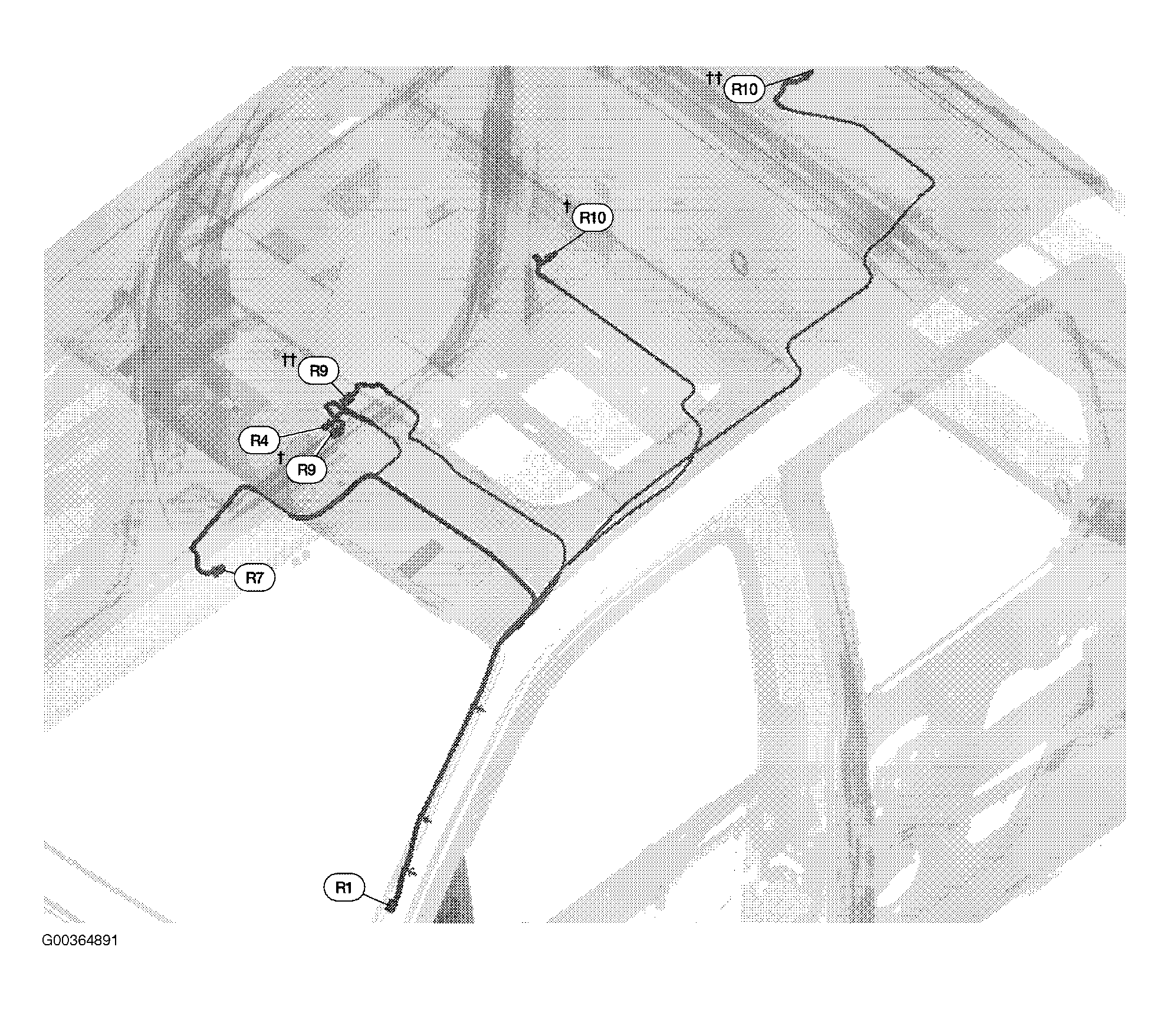

Fig 10: Roof Harness

G00364891

Courtesy of NISSAN MOTOR CO., U.S.A.

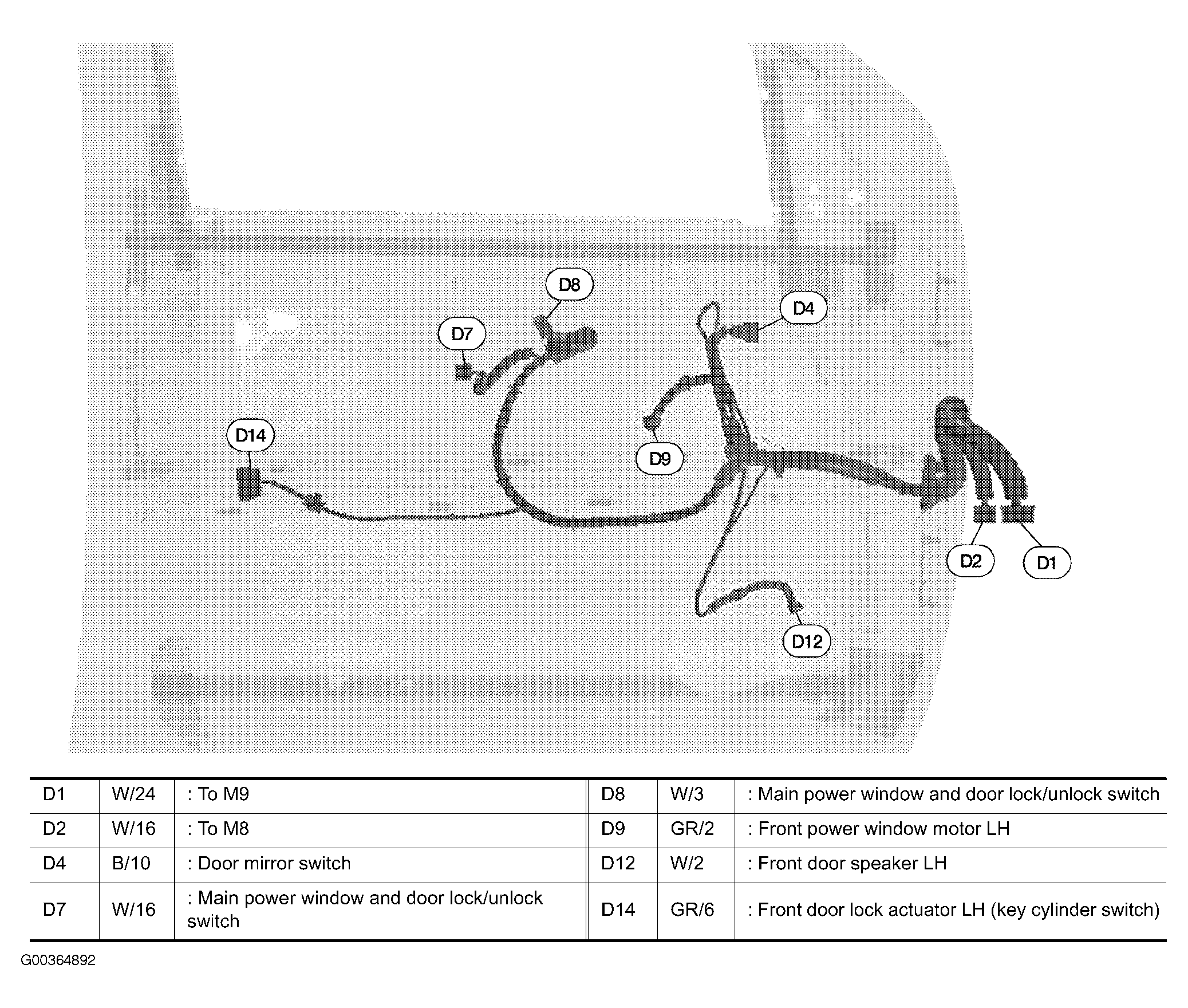

Fig 11: Left Front Door

G00364892

Courtesy of NISSAN MOTOR CO., U.S.A.

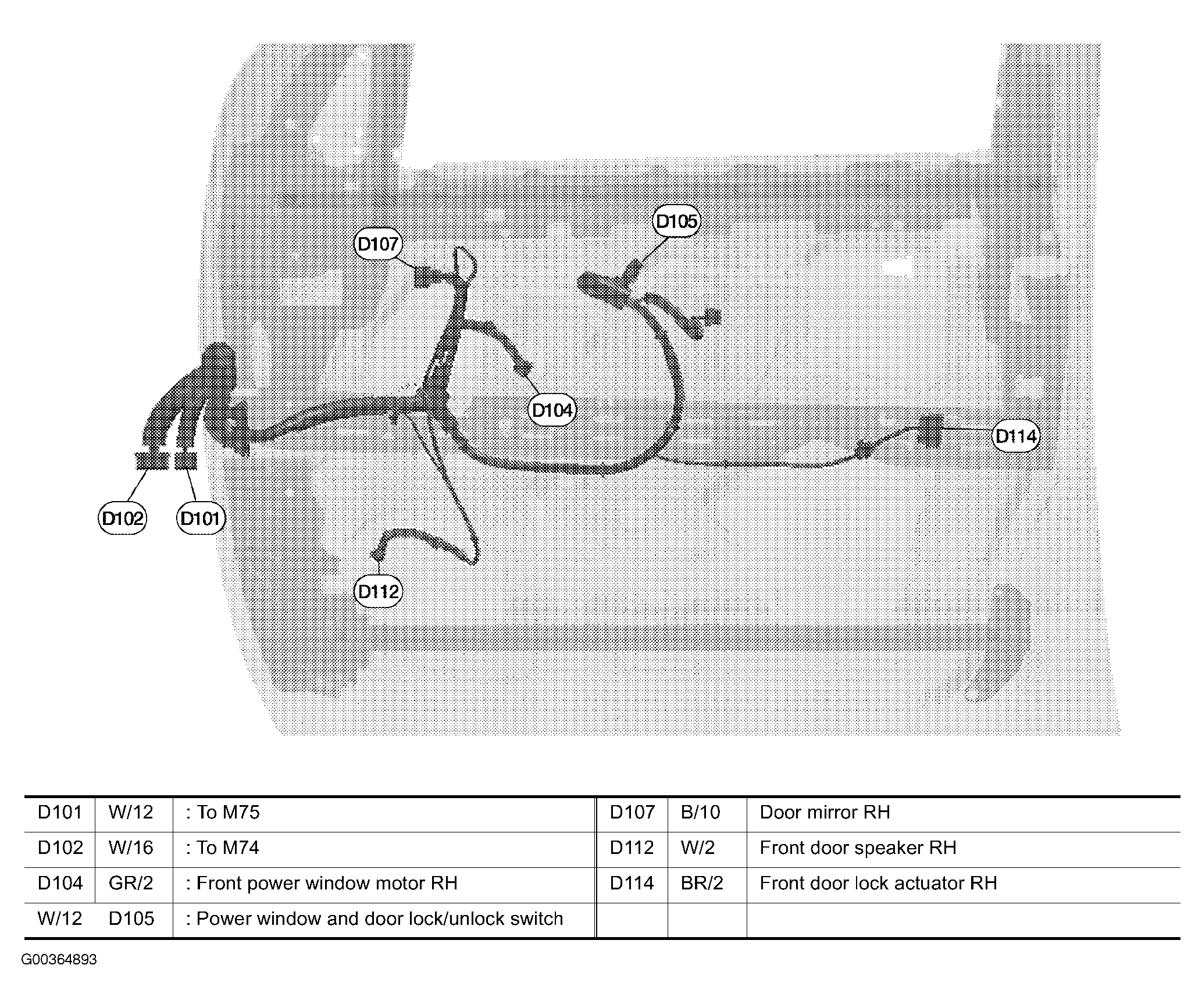

Fig 12: Right Front Door

G00364893

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Left Rear Door (King Cab)

G00364894

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Right Rear Door (King Cab)

G00360267

Courtesy of NISSAN MOTOR CO., U.S.A.

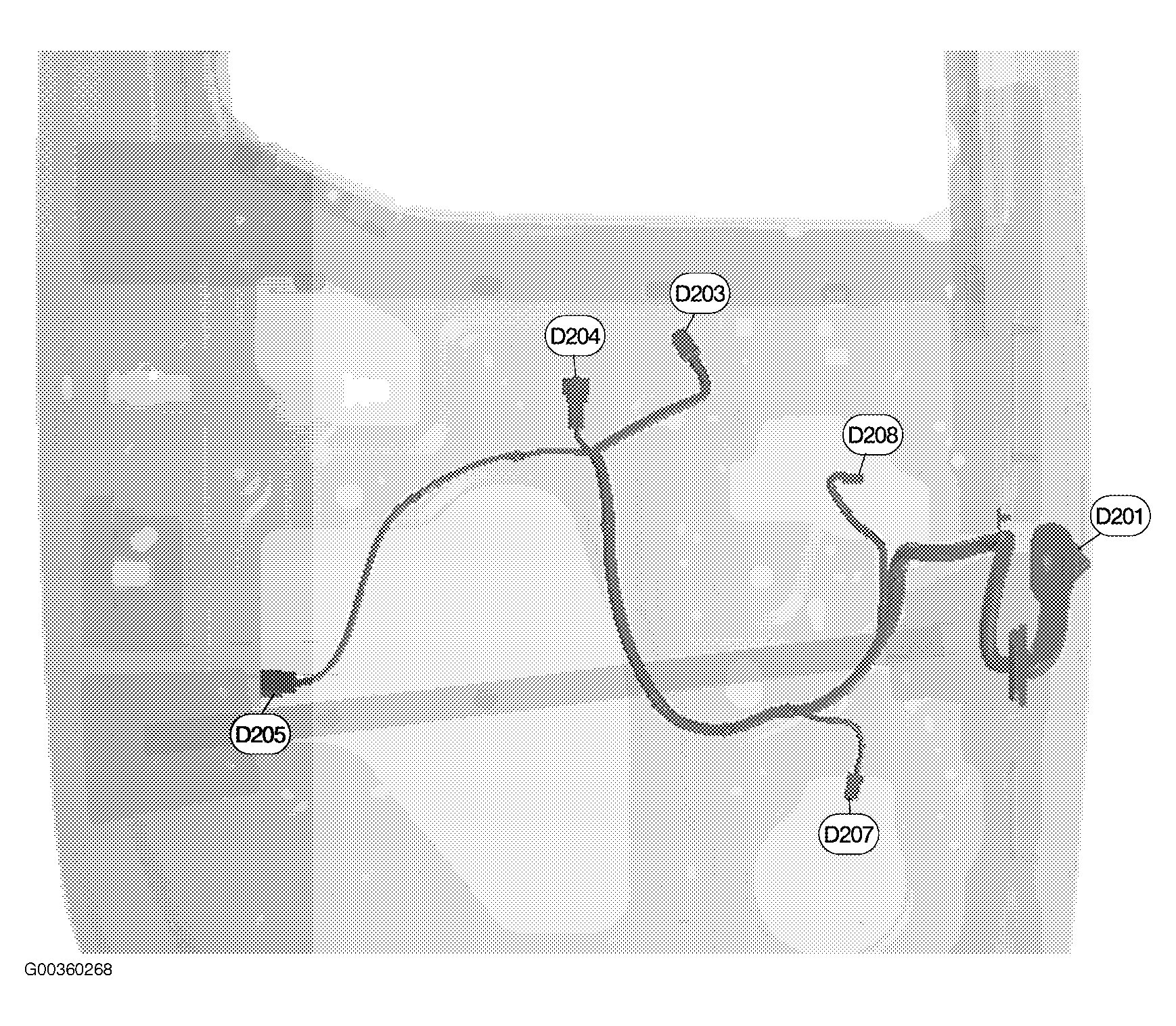

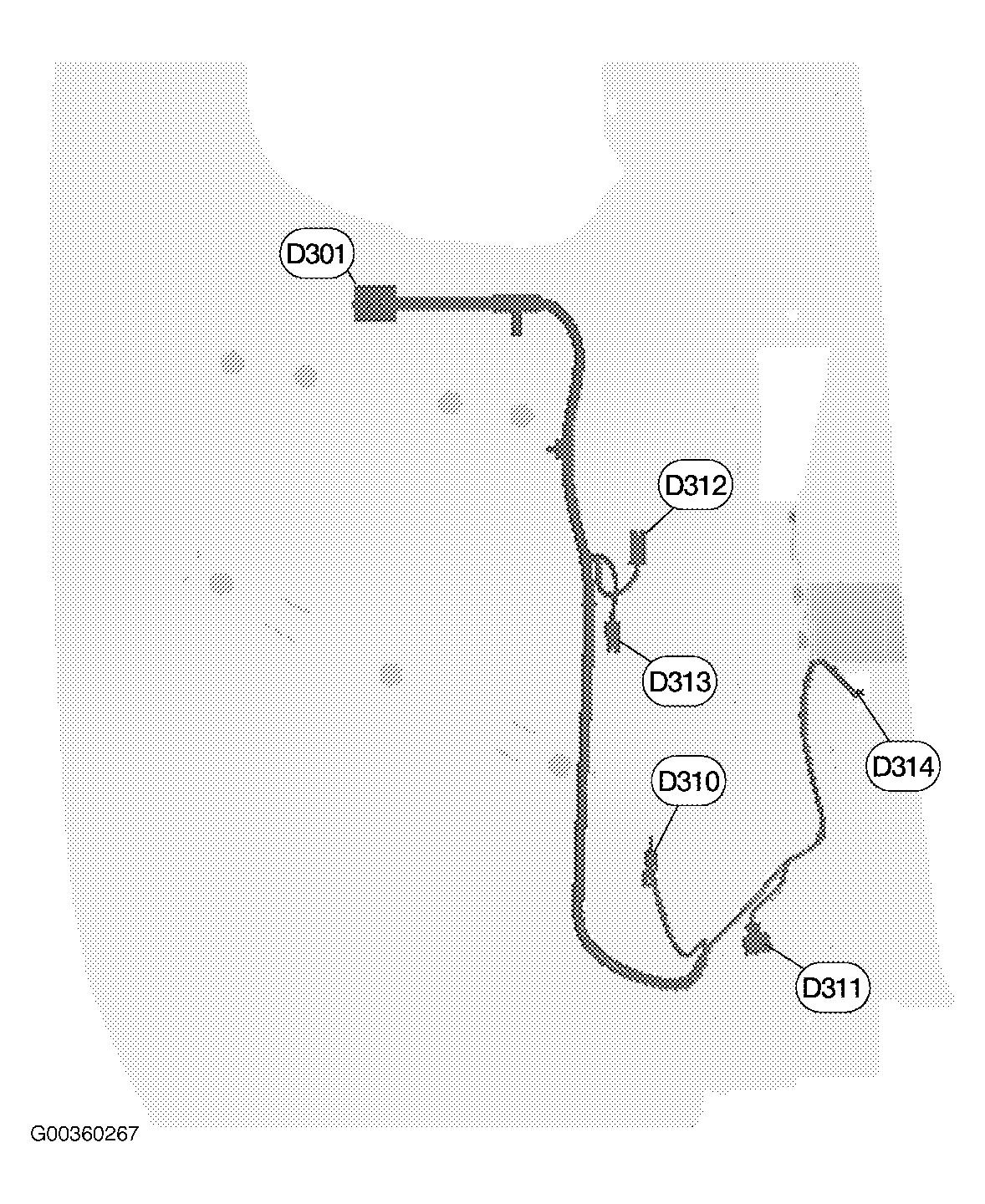

Fig 15: Left Rear Door (Crew Cab)

G00360268

Courtesy of NISSAN MOTOR CO., U.S.A.

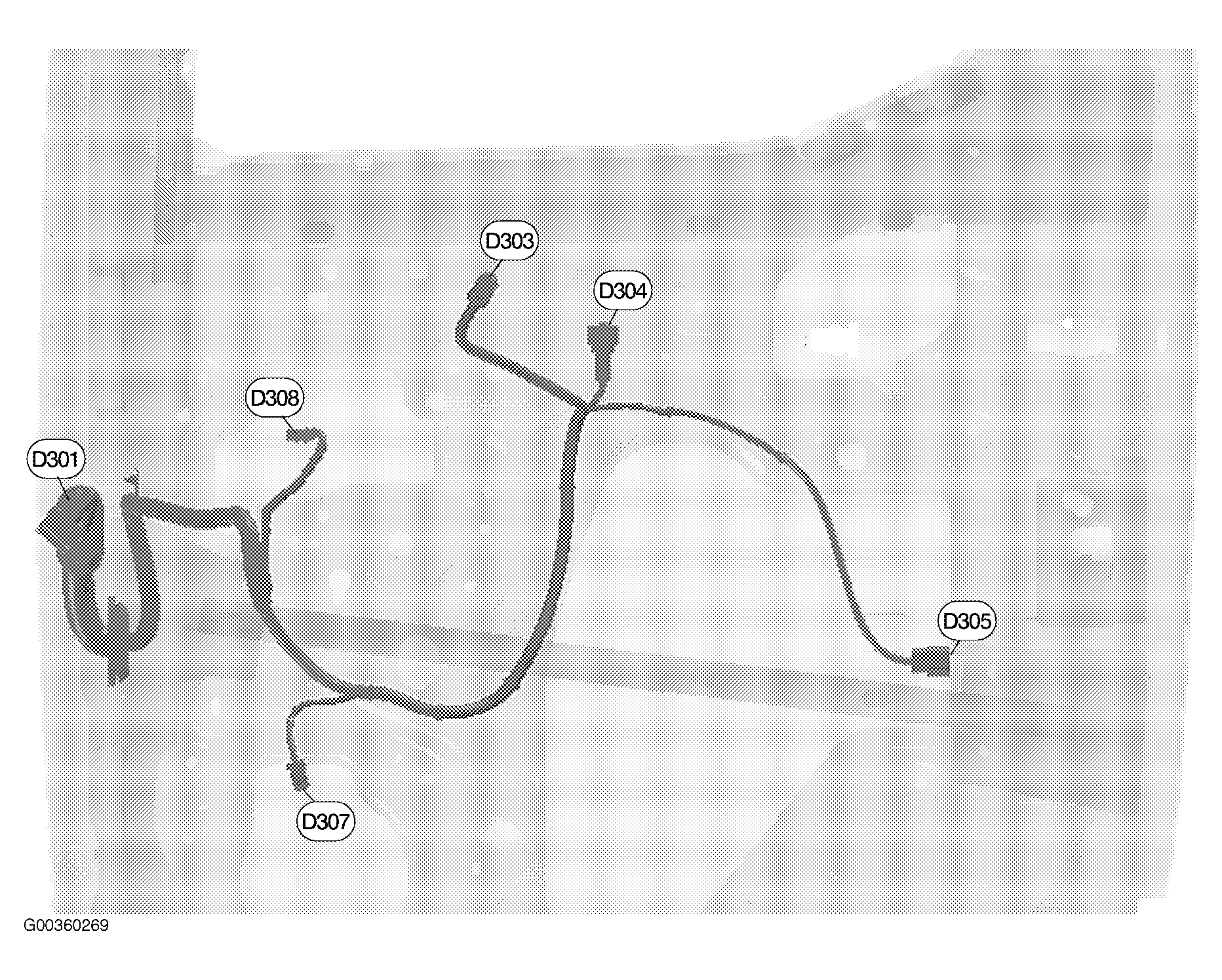

Fig 16: Right Rear Door (Crew Cab)

G00360269

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Engine Compartment

G00360270

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Passenger Compartment (1 Of 2)

G00360271

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Passenger Compartment (2 Of 2)

G00360272

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Dashboard & Center Console

G00459197

Courtesy of NISSAN MOTOR CO., U.S.A.

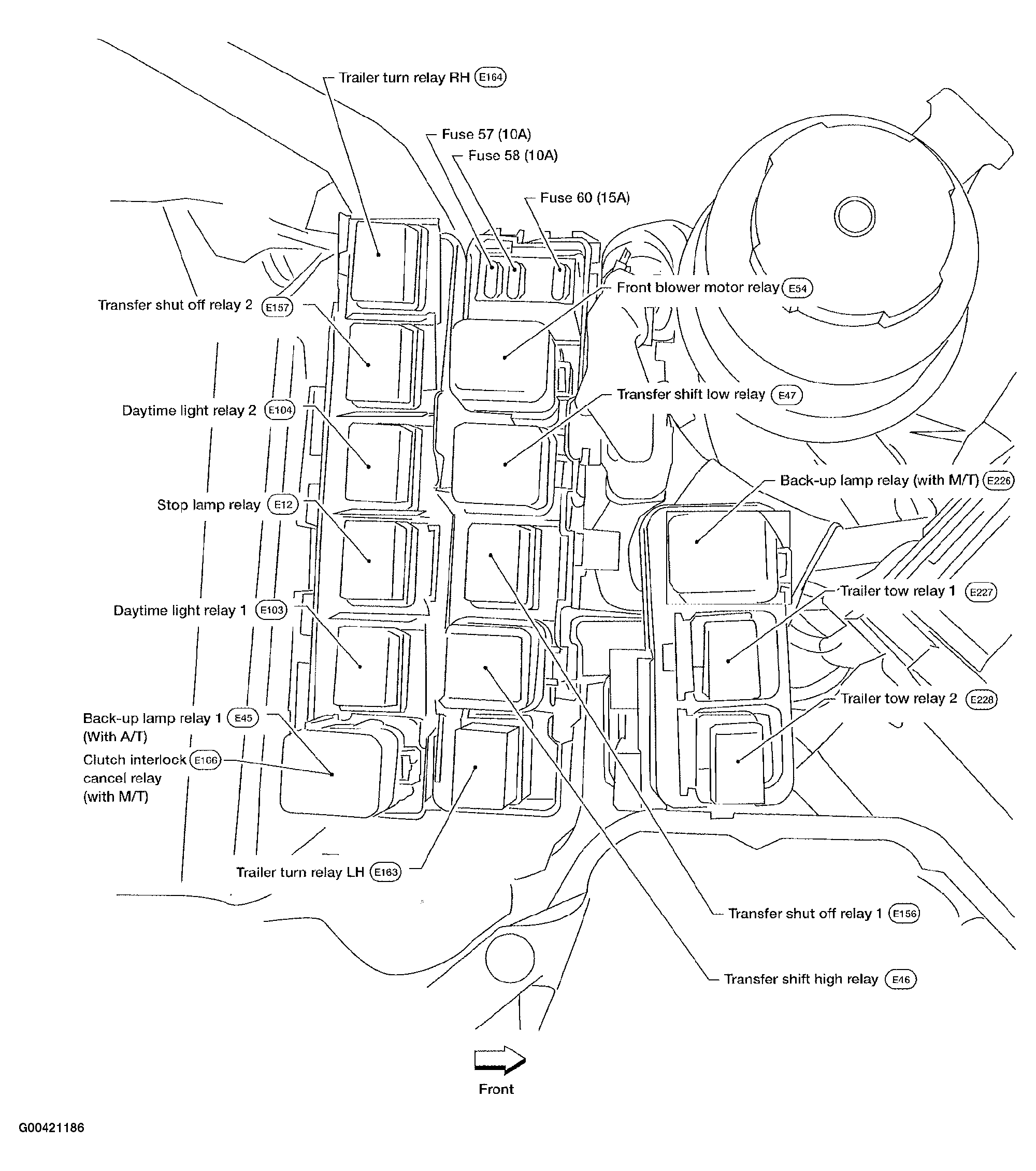

Fig 21: Fuse & Relay Box

G00421186

Courtesy of NISSAN MOTOR CO., U.S.A.

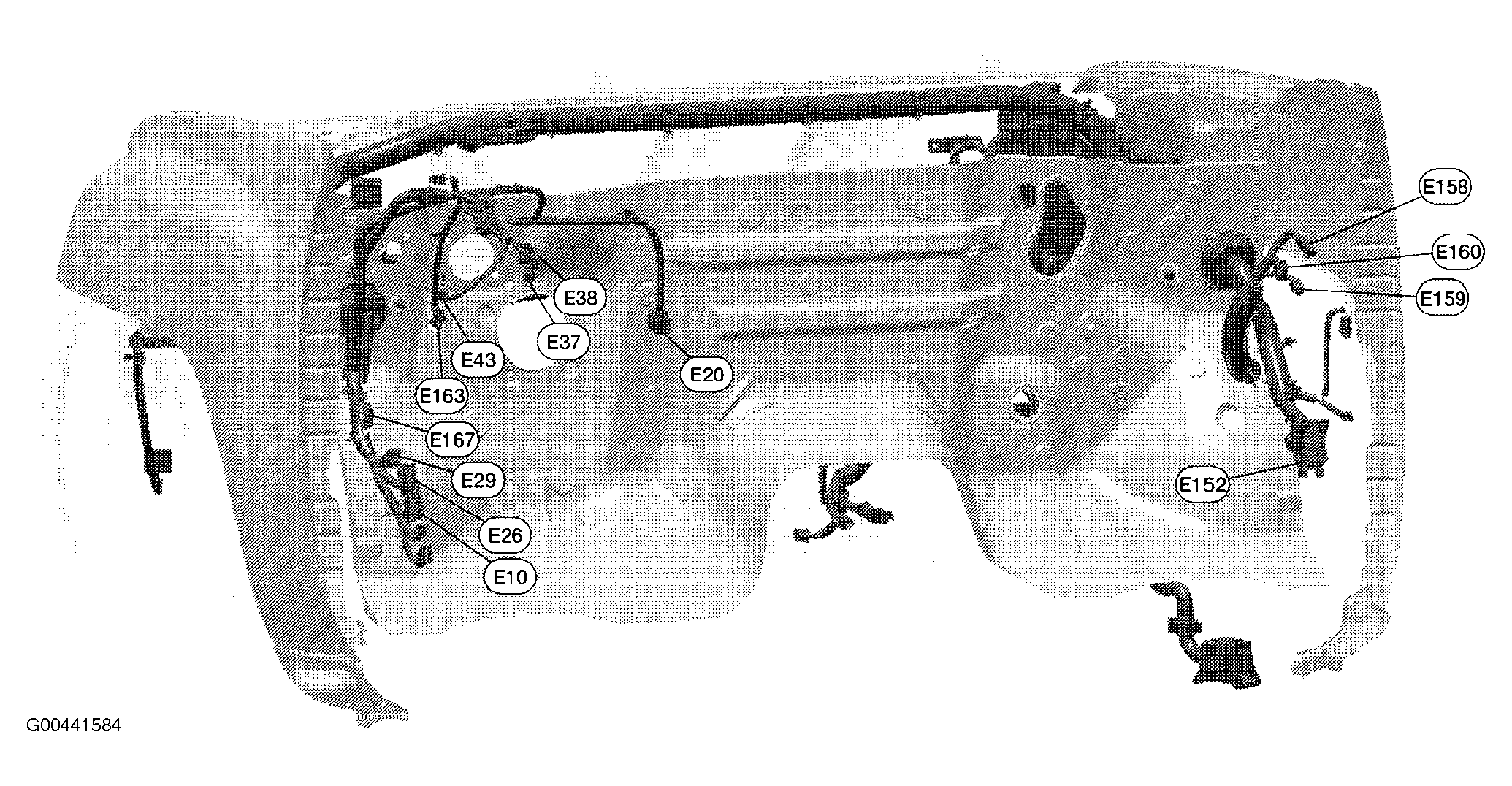

Fig 22: Dash & Kick Panels

G00441584

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Left Side Of Engine Compartment

G00441585

Courtesy of NISSAN MOTOR CO., U.S.A.
