Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Circuit Breaker 2 (M82) | Behind left end of dash. See Figure. |

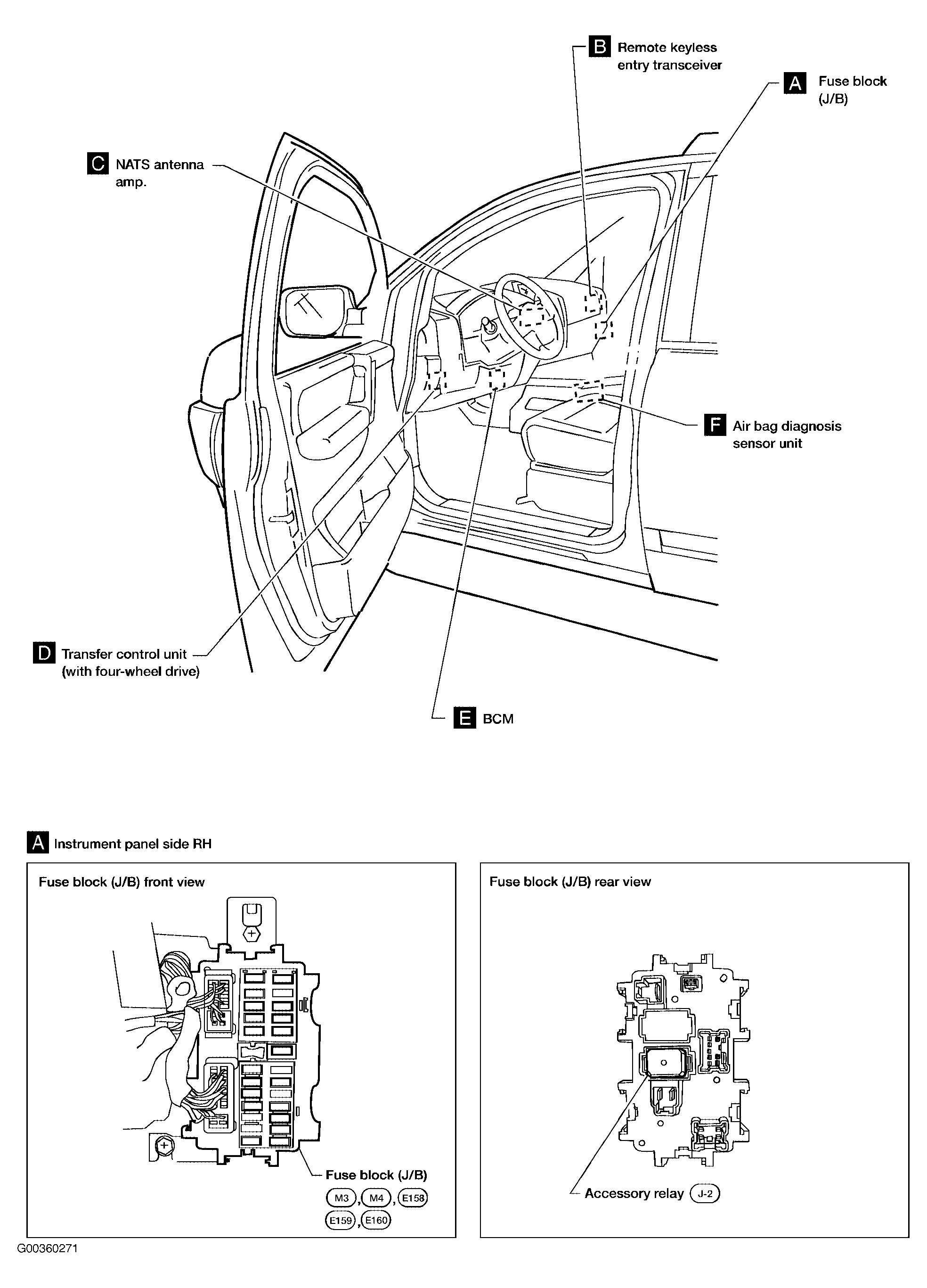

| Fuse Block (J/B) | Under right side of dash. See Figure. |
| Fuse & Fusible Link Box | Right rear of engine compartment. See Figure. |
| Fuse & Relay Box | Right rear of engine compartment. See Figure. |

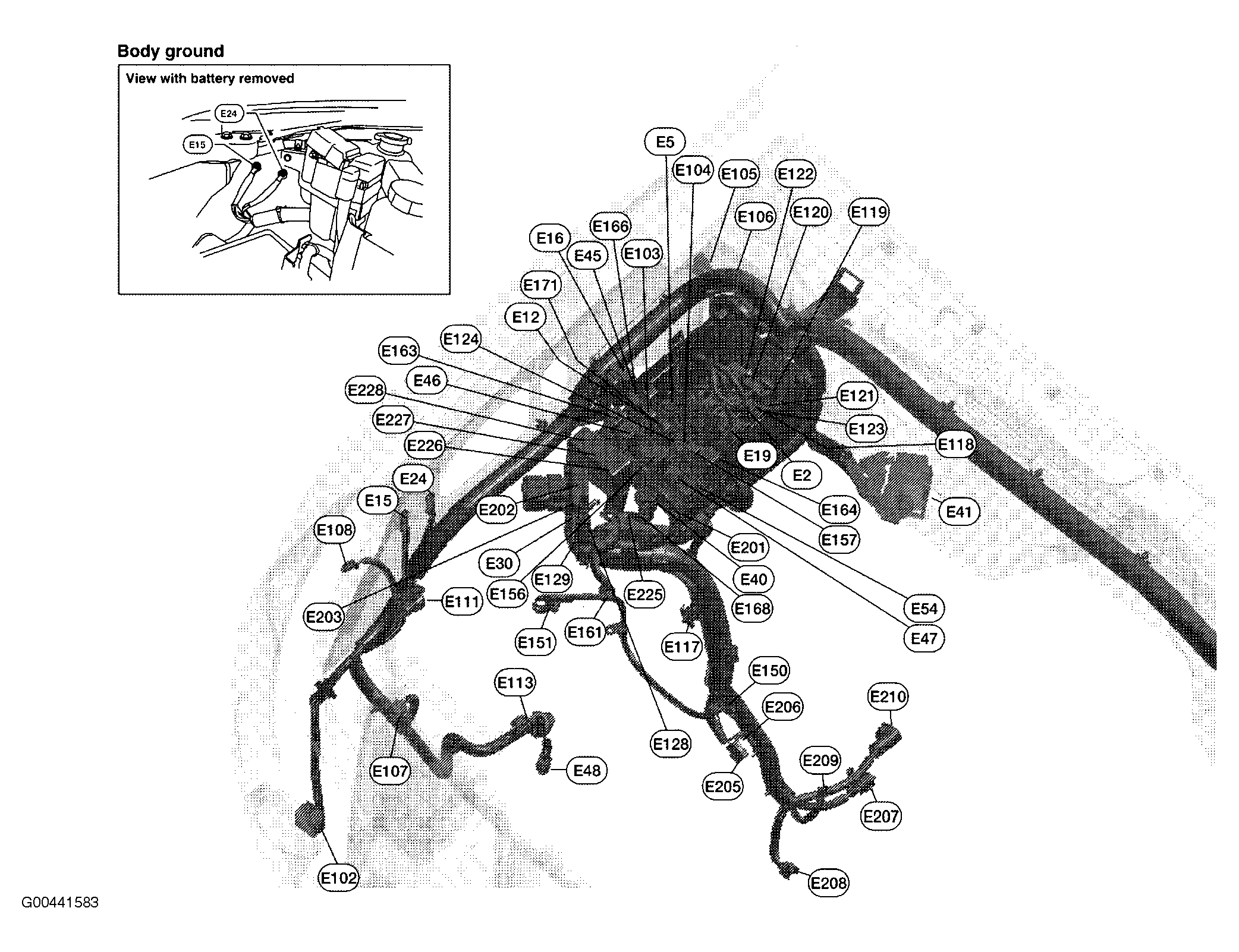

| Fusible Link Box (Battery) (E30) | Right side of engine compartment. See Figure. |
| IPDM E/R | Right rear of engine compartment. See Figure. |
