Nissan-Datsun
>>
2008
>>
Altima Base
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch
>>
On-Vehicle Repair
>>
Clutch Piping
>>
Exploded View
Exploded View

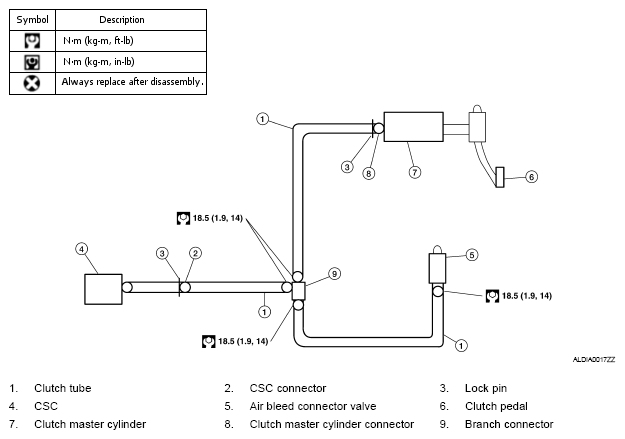

Fig 1: Exploded View Of Clutch Piping With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
