Exploded View

WARNING: This page is about a different variant/trim than selected.

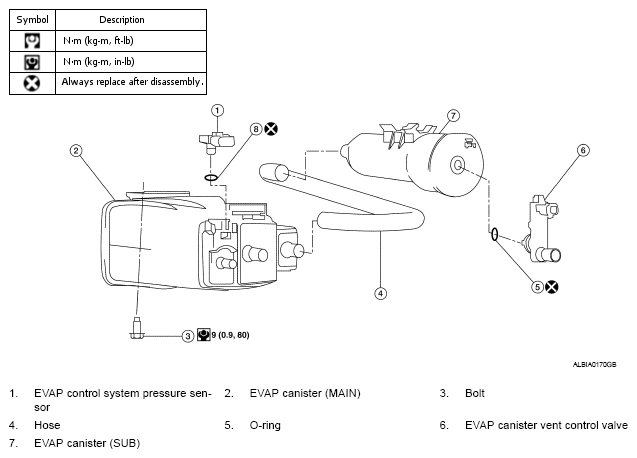

Fig 1: Exploded View Of EVAP Canister With Torque Specification
G05695157Courtesy of NISSAN MOTOR CO., U.S.A.
