Engine Control Component Parts/Control Systems Application

WARNING: This page is about a different variant/trim than selected.

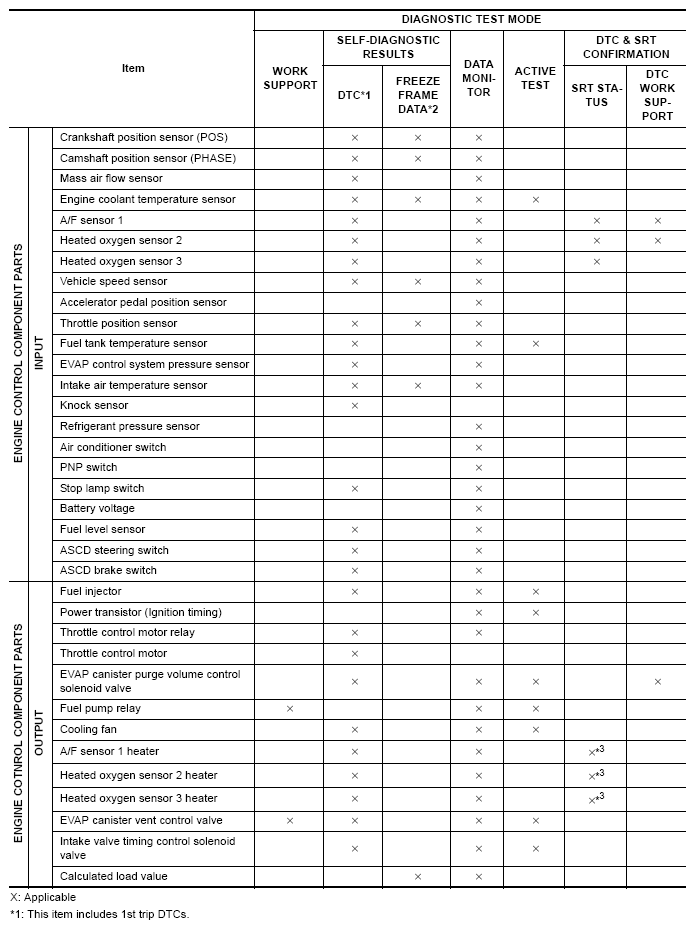

Fig 1: Engine Control Components Application Chart
G05694942Courtesy of NISSAN MOTOR CO., U.S.A.
