System - Engine Mechanical & Other

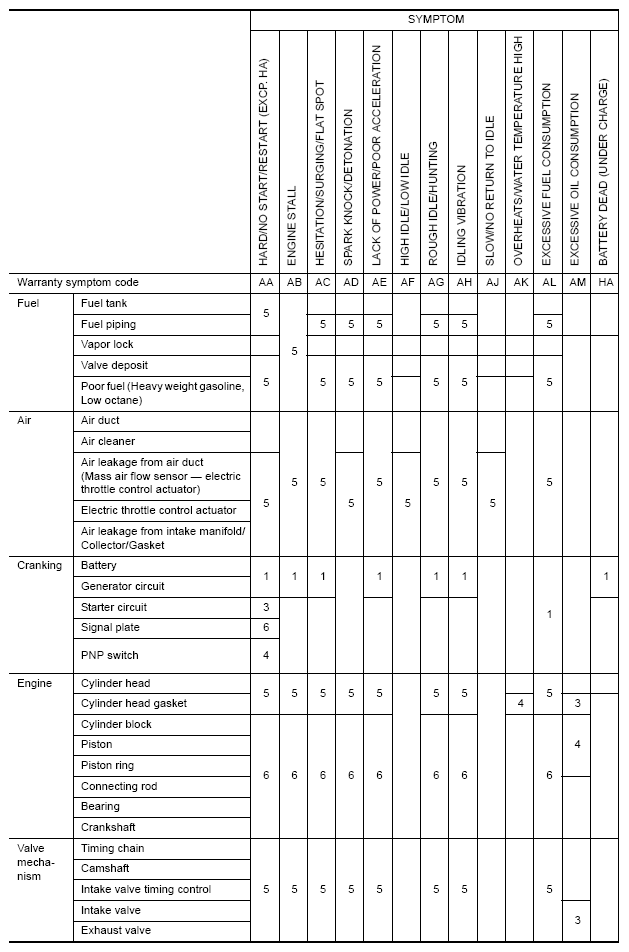

Fig 1: System - Engine Mechanical & Other Symptom Chart (1 Of 2)
G05688552Courtesy of NISSAN MOTOR CO., U.S.A.

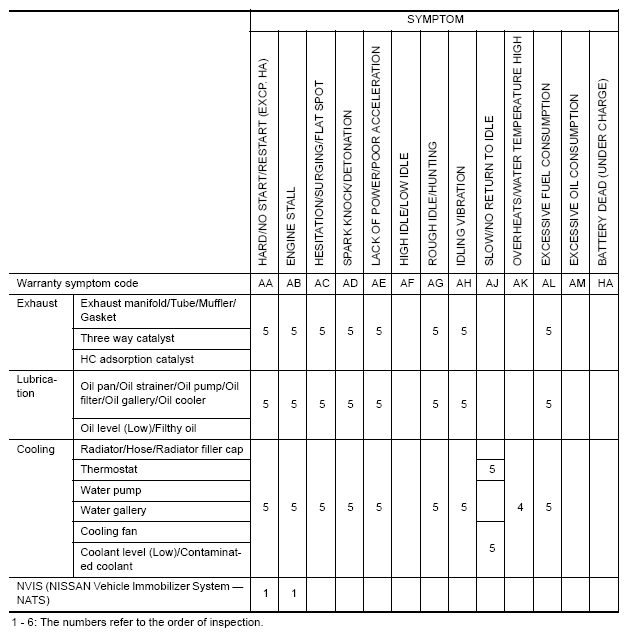

Fig 2: System - Engine Mechanical & Other Symptom Chart (2 Of 2)
G05688553Courtesy of NISSAN MOTOR CO., U.S.A.
