Evaporative Emission Line Drawing

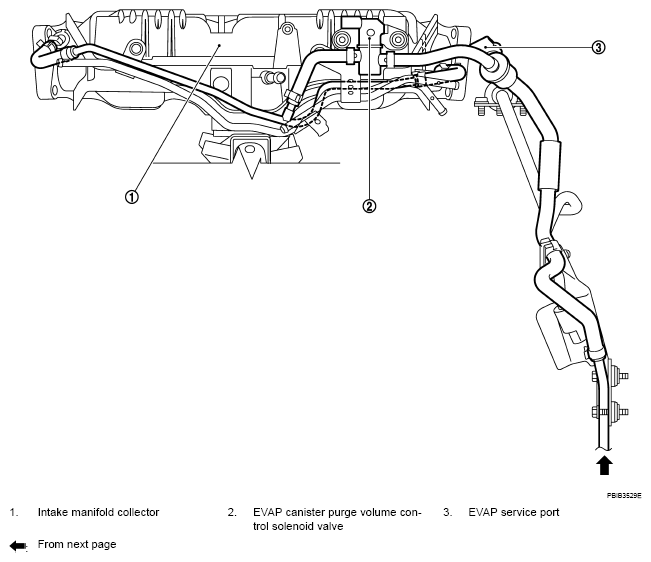

Fig 1: Identifying Evaporative Emission Line Components
G04874781Courtesy of NISSAN MOTOR CO., U.S.A.

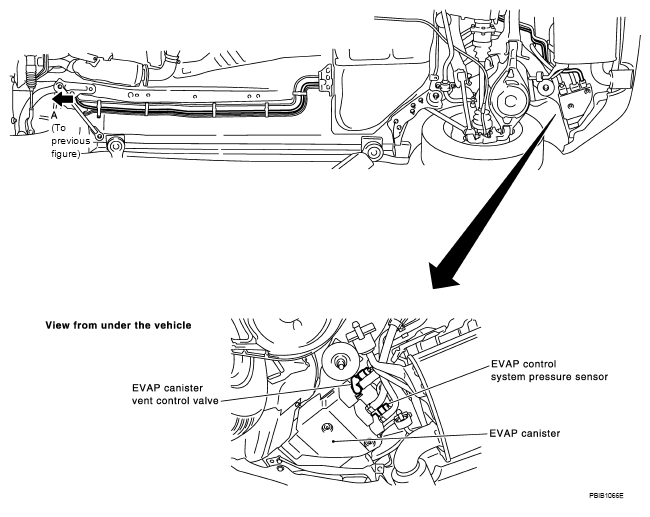

Fig 2: Identifying Evaporative Emission Line Components
G04874782Courtesy of NISSAN MOTOR CO., U.S.A.
