System - Basic Engine Control System

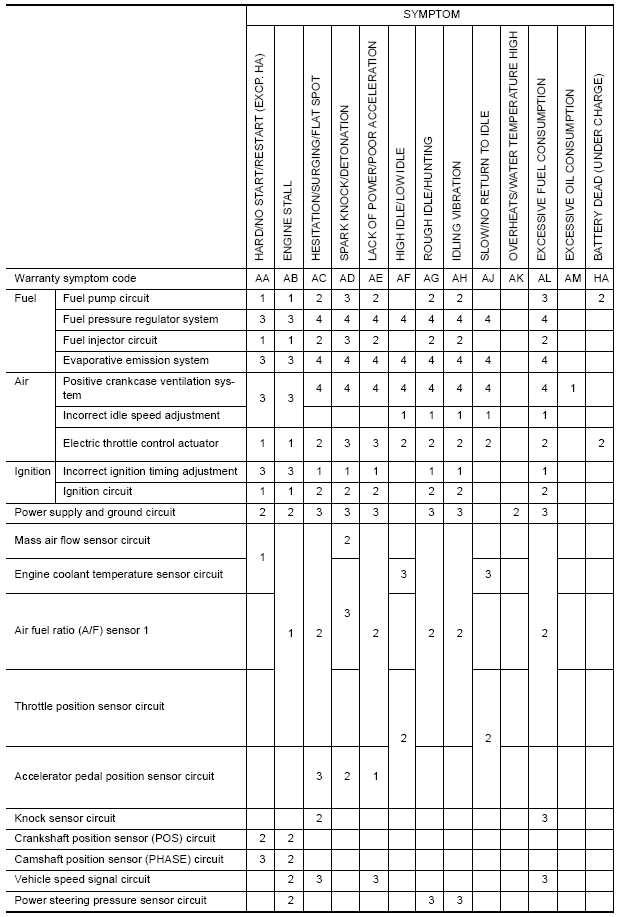

Fig 1: Symptom Matrix Chart - Basic Engine Control System
G04938743Courtesy of NISSAN NORTH AMERICA, INC.

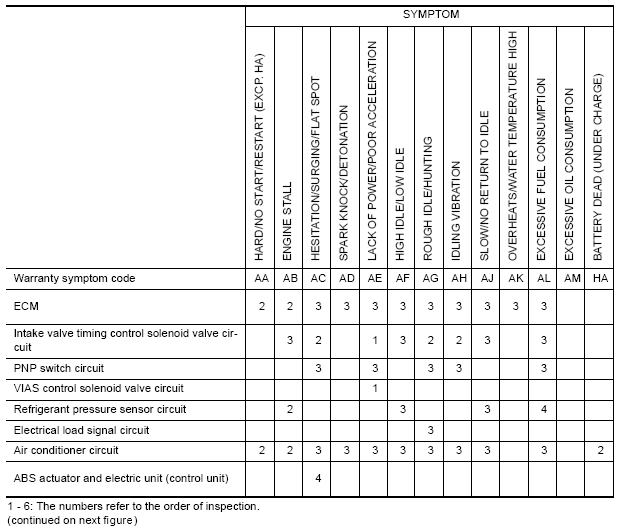

Fig 2: Symptom Matrix Chart - Basic Engine Control System
G04938744Courtesy of NISSAN NORTH AMERICA, INC.
