System - Engine Mechanical & Other

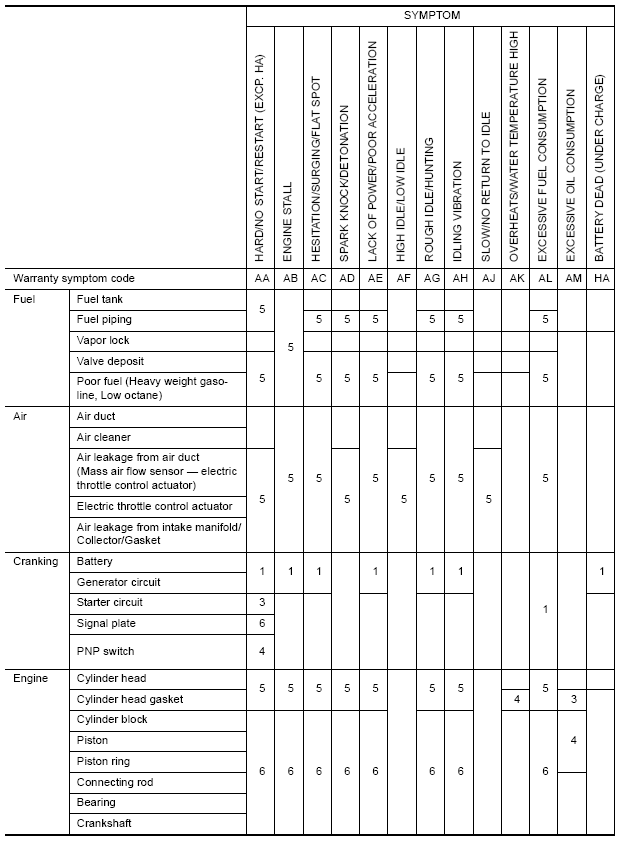

Fig 1: Symptom Matrix Chart - Engine Mechanical & Other
G04938745Courtesy of NISSAN NORTH AMERICA, INC.

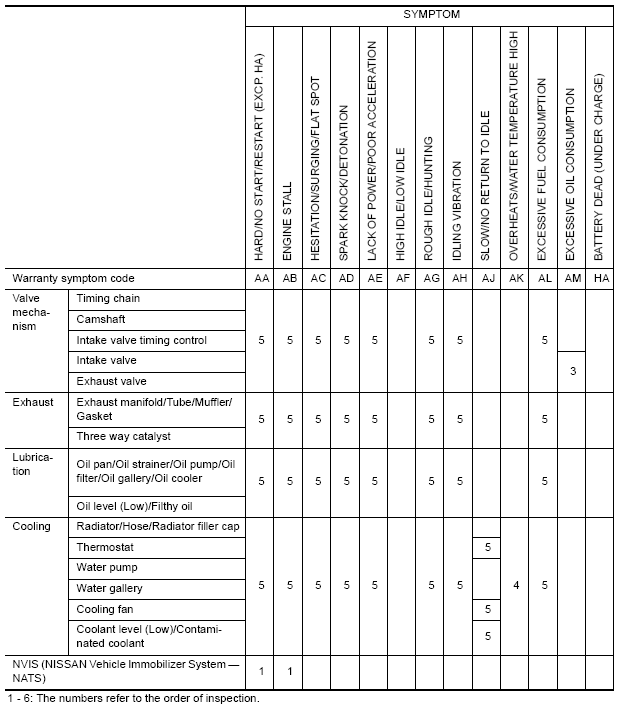

Fig 2: Symptom Matrix Chart - Engine Mechanical & Other
G04938746Courtesy of NISSAN NORTH AMERICA, INC.
