Circuit Diagram

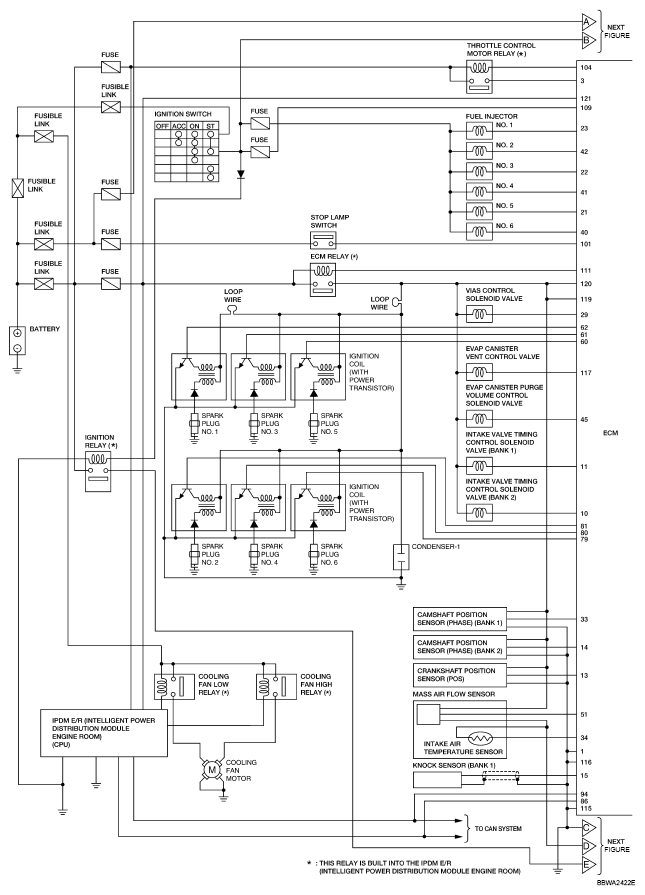

Fig 1: Engine Control System - Circuit Diagram (1 Of 2)
G04938755Courtesy of NISSAN NORTH AMERICA, INC.

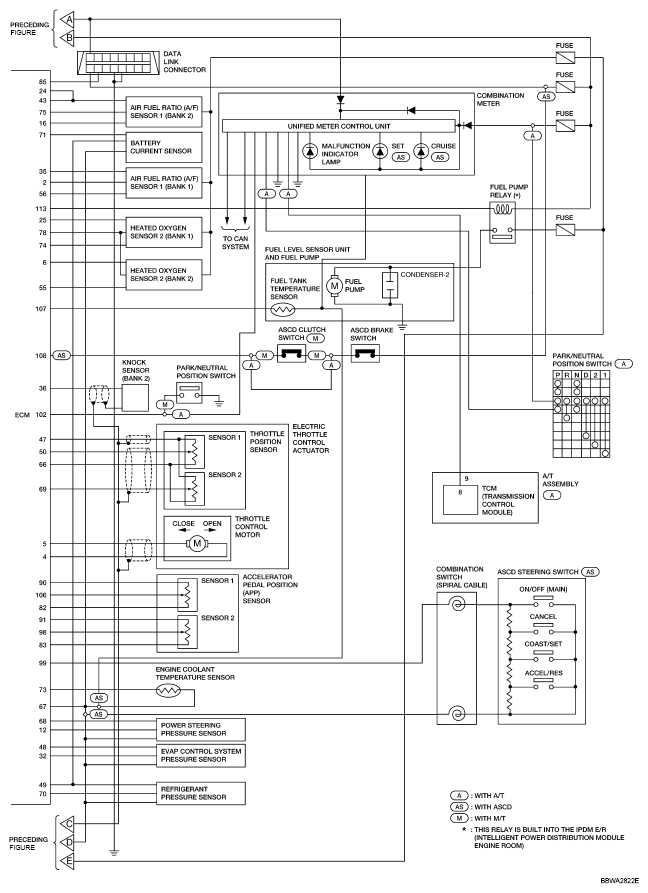

Fig 2: Engine Control System - Circuit Diagram (2 Of 2)
G04938756Courtesy of NISSAN NORTH AMERICA, INC.
