Evaporative Emission Line Drawing

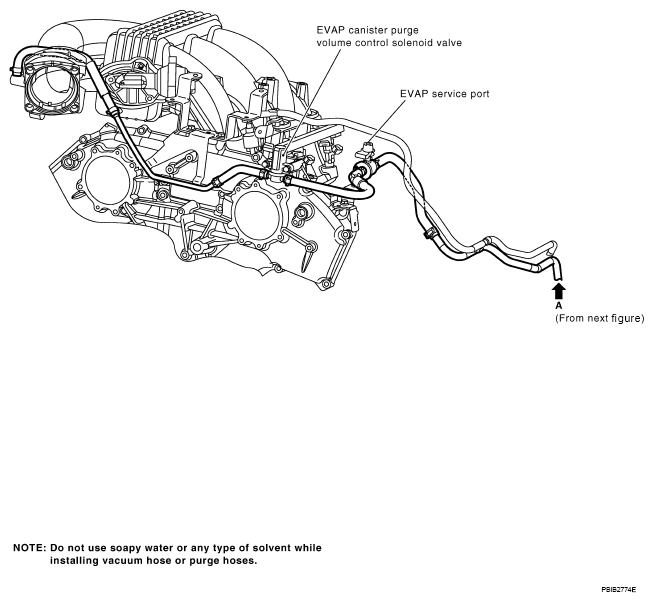

Fig 1: Identifying EVAP Canister Purge Volume Control Solenoid Valve
G04895278Courtesy of NISSAN NORTH AMERICA, INC.

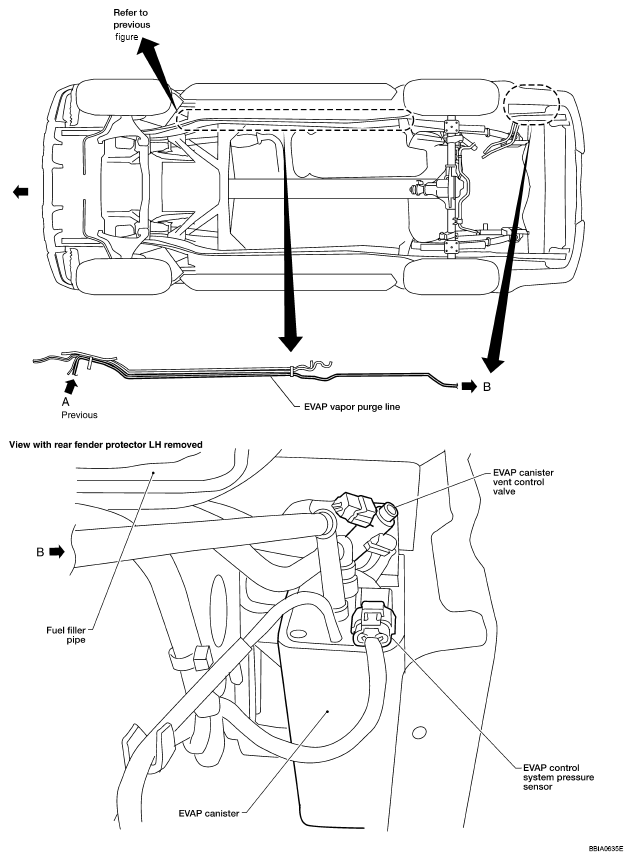

Fig 2: Identifying EVAP Canister Vent Control Valve And EVAP Control System Pressure Sensor
G04938673Courtesy of NISSAN NORTH AMERICA, INC.
