DTC P1217 Engine Over Temperature: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

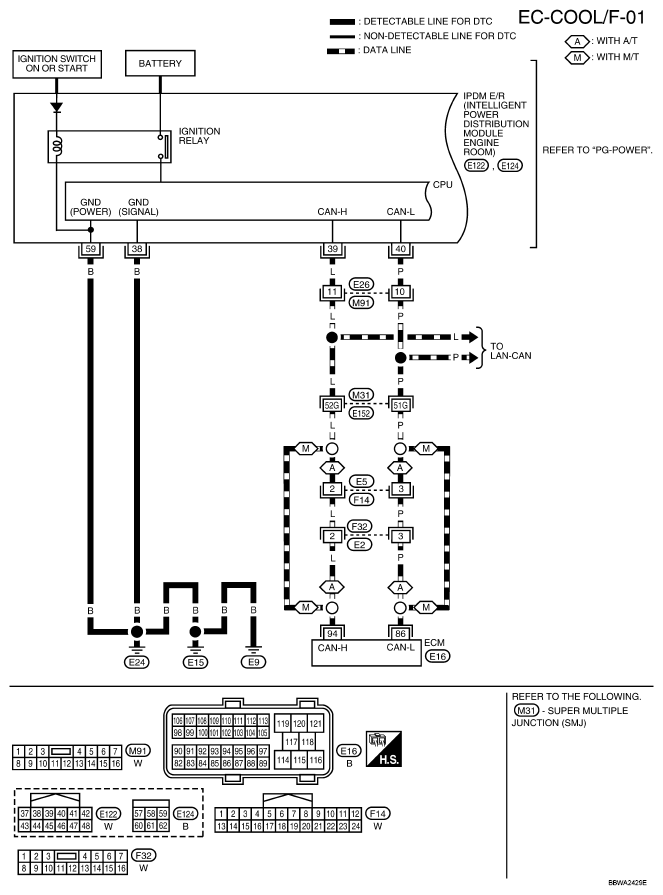

Fig 1: Wiring Diagram - EC-COOL/F-01

Courtesy of NISSAN NORTH AMERICA, INC.

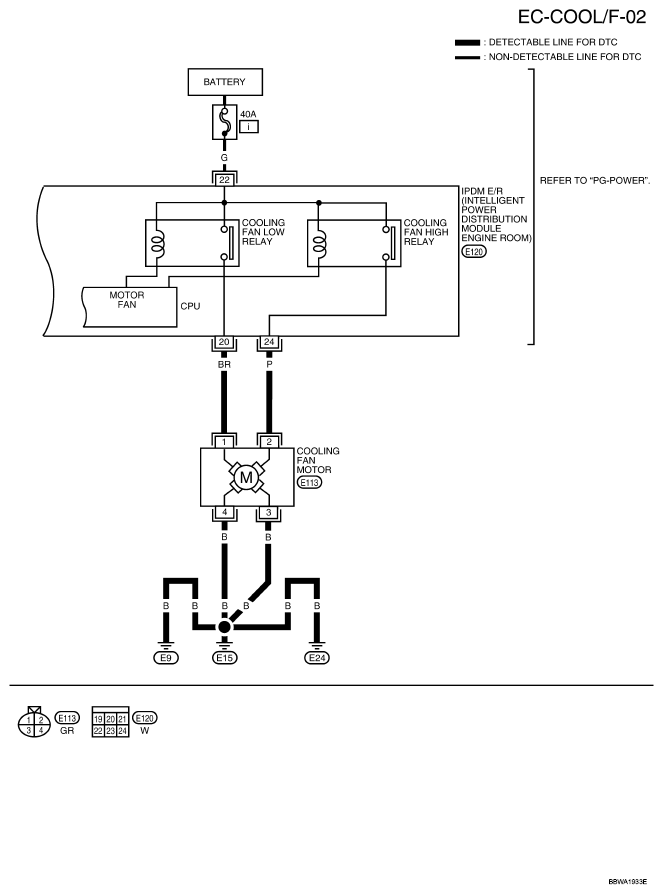

Fig 2: Wiring Diagram - EC-COOL/F-02

Courtesy of NISSAN NORTH AMERICA, INC.
