Tooth Contact

1. Remove pinion sleeve assembly. Refer to "PINION SLEEVE ASSEMBLY ".
2. Apply red lead to drive gear.
   CAUTION: Apply red lead to both the faces of 3 to 4 gears at 4 locations evenly spaced on drive gear.
3. Install pinion sleeve shims and pinion sleeve assembly. Refer to "PINION SLEEVE ASSEMBLY ".
4. Remove the plug on the upper side of transfer case.

   When installing plug, apply sealant on screw part, and tighten it at the specified torque. Refer to "COMPONENTS ".

   • Use Genuine Silicone RTV or equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
   Fig 1: Removing Pinion Sleeve Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Rotate companion flange back and forth several times, and check drive pinion gear to drive gear tooth contact by viewing from the plug hole.
   Fig 2: Rotating Companion Flange Back And Forth Several Times

   Courtesy of NISSAN MOTOR CO., U.S.A.
   TOOTH CONTACT CONDITION CHART



   Pinion sleeve shim selection value mm (in)		Tooth contact condition		Need for adjustment
   		Drive side	Back
   ↑ Thicker	+0.12 (+0.0047)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.	Yes
   	+0.09 (+0.0035)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.
   	+0.06 ((+0.0024)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.
   	+0.03 (+0.0012)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.	No
   Thinner ↓	-0 (0.0)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.
   	-0.03 (-0.0012)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.
   	-0.06 (-0.0024)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.	Yes
   	-0.09 (-0.0035)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.
   	-0.12 (-0.0047)	Courtesy of NISSAN MOTOR CO., U.S.A.	Courtesy of NISSAN MOTOR CO., U.S.A.

6. If tooth contact is poorly adjusted, adjust pinion height (dimension X) in the following manner.

Fig 3: Adjusting Drive Pinion Height

Courtesy of NISSAN MOTOR CO., U.S.A.

• If the tooth contact is near the face (face contact), or near the heal (heel contact), thin pinion sleeve shims to move drive pinion closer to drive gear.

  Refer to "PINION SLEEVE SHIM ".

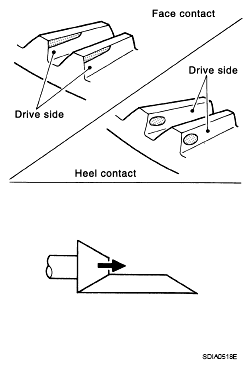

  Fig 4: Identifying Tooth Contact (Face Contact And Heel Contact)

  Courtesy of NISSAN MOTOR CO., U.S.A.
• If the tooth contact is near the flank (flank contact), or near the toe (toe contact), thicken pinion sleeve shims to move drive pinion farther from drive gear.

Refer to "PINION SLEEVE SHIM ".

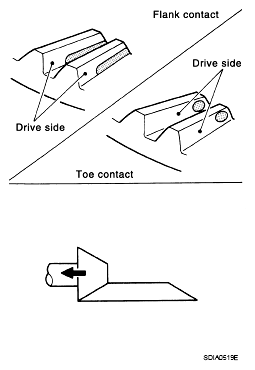

Fig 5: Identifying Tooth Contact (Flank Contact And Toe Contact)

Courtesy of NISSAN MOTOR CO., U.S.A.
