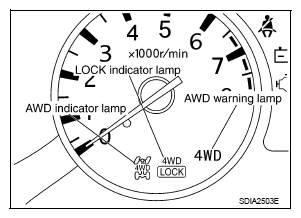

AWD Indicator Lamp And Lock Indicator Lamp
The following is the indications of indicator lamp.
AWD INDICATOR LAMP AND LOCK INDICATOR LAMP CONDITION CHART
| Condition |
AWD indicator lamp |
LOCK indicator lamp |
| AUTO mode |
ON |
OFF |
| LOCK mode |
ON |
ON |
| 2WD mode |
OFF |
OFF |
| Lamp check |
Turns ON for approx. 1 second when ignition switch is turned ON. |
