Removal and Installation: Components

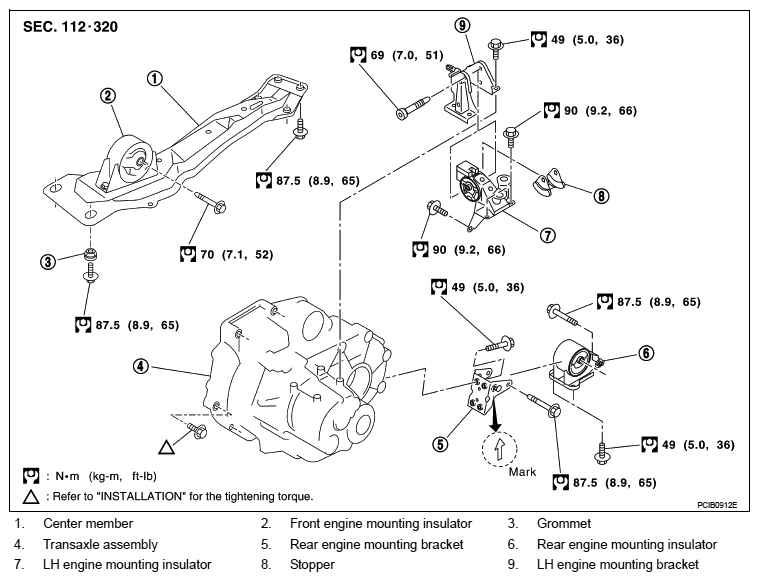

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications

G06153136

Courtesy of NISSAN MOTOR CO., U.S.A.
