Gear Components

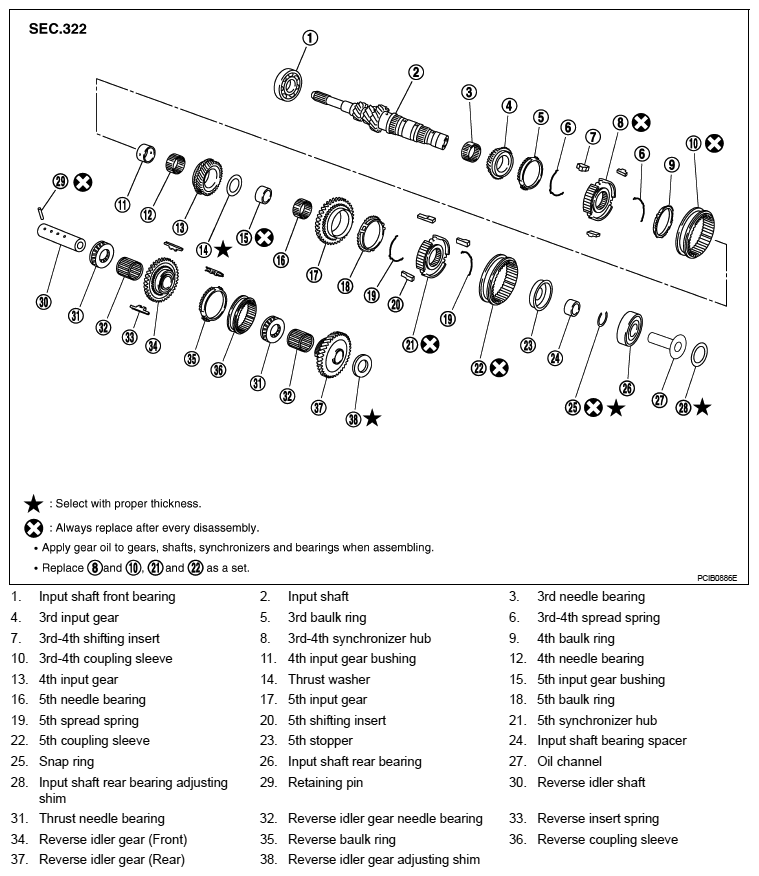

Fig 1: Identifying Gear Components (1 Of 2)
G06153140Courtesy of NISSAN MOTOR CO., U.S.A.

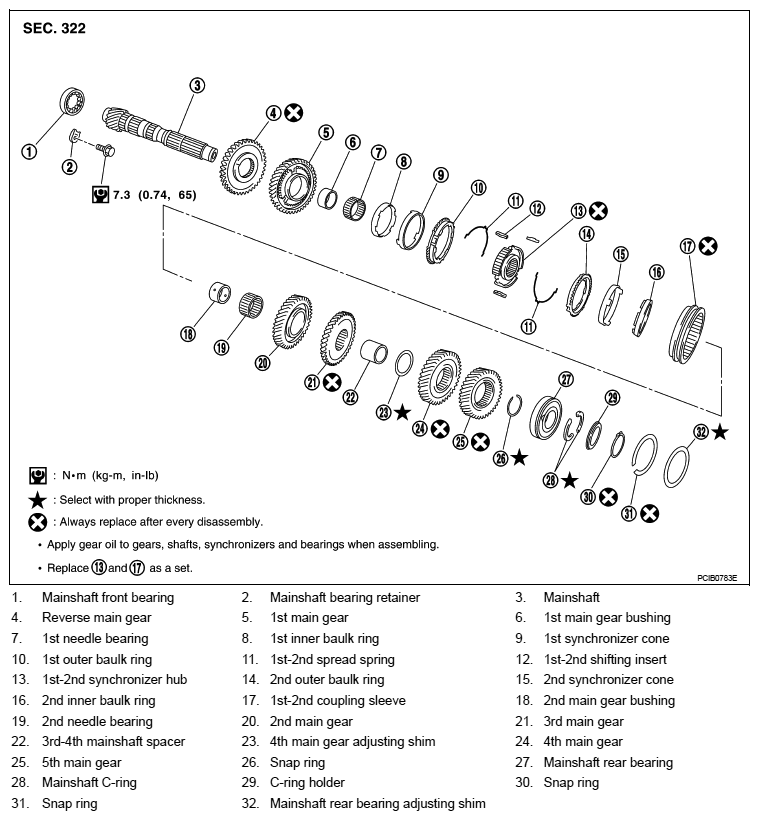

Fig 2: Gear Replacement Components With Torque Specifications (2 Of 2)
G06153141Courtesy of NISSAN MOTOR CO., U.S.A.
