Components of Control Device and Cable

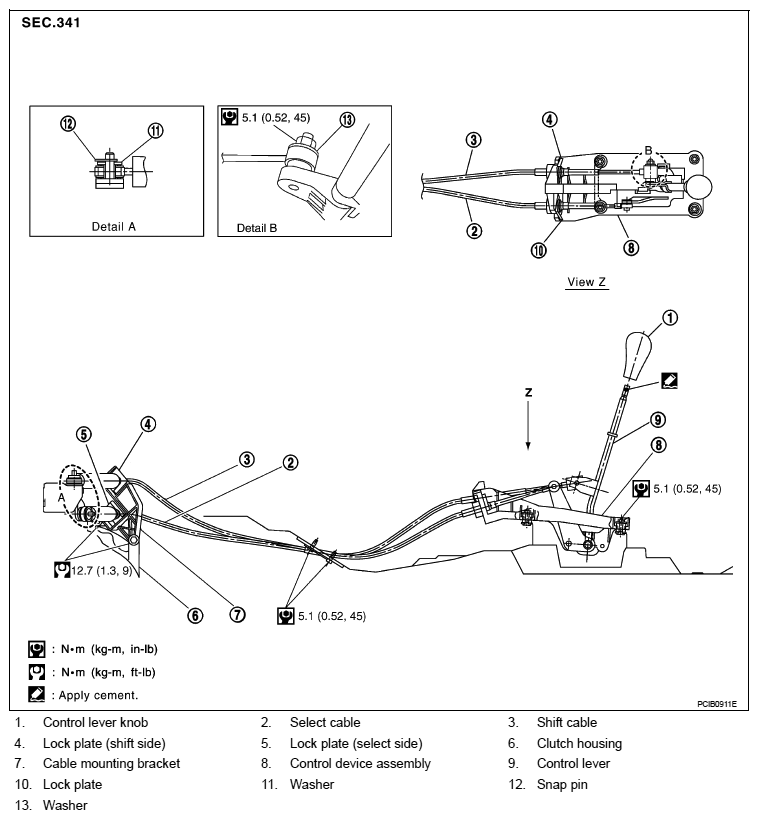

Fig 1: Control Device And Cable Replacement Components With Torque Specifications

G06153134

Courtesy of NISSAN MOTOR CO., U.S.A.
