Removal and Installation: Component

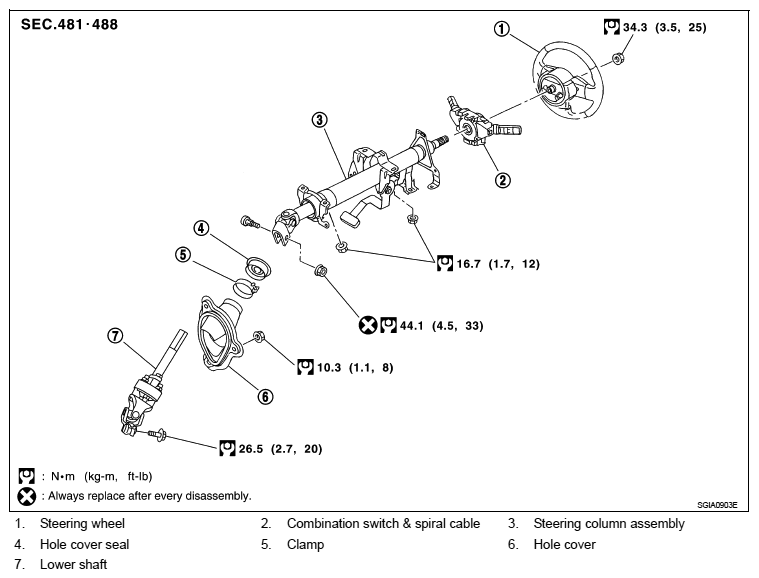

Fig 1: Steering Column Components With Torque Specifications
G06153807Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not give axial impact to steering column assembly during removal and installation.
  • Do not move steering gear when removing steering column assembly.
