How To Use This Information: Components: Notes

THE LARGE ILLUSTRATIONS are exploded views (See the following) and contain tightening torques, lubrication points and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.

Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

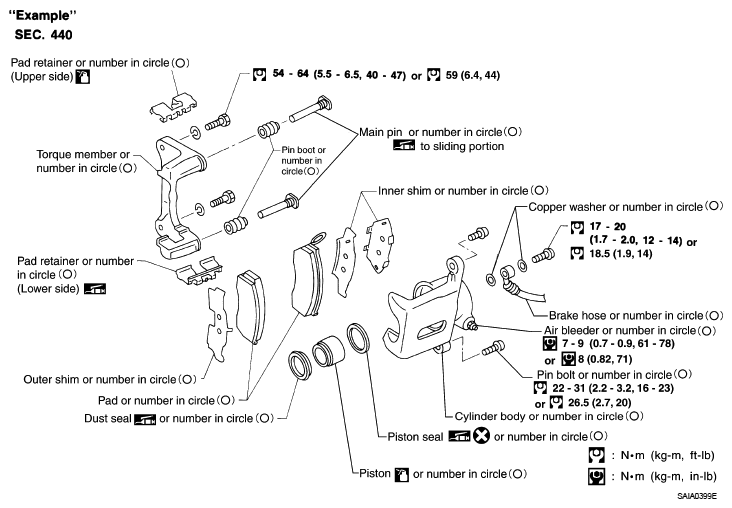

Fig 1: Exploded View Of Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
