Function and System Application

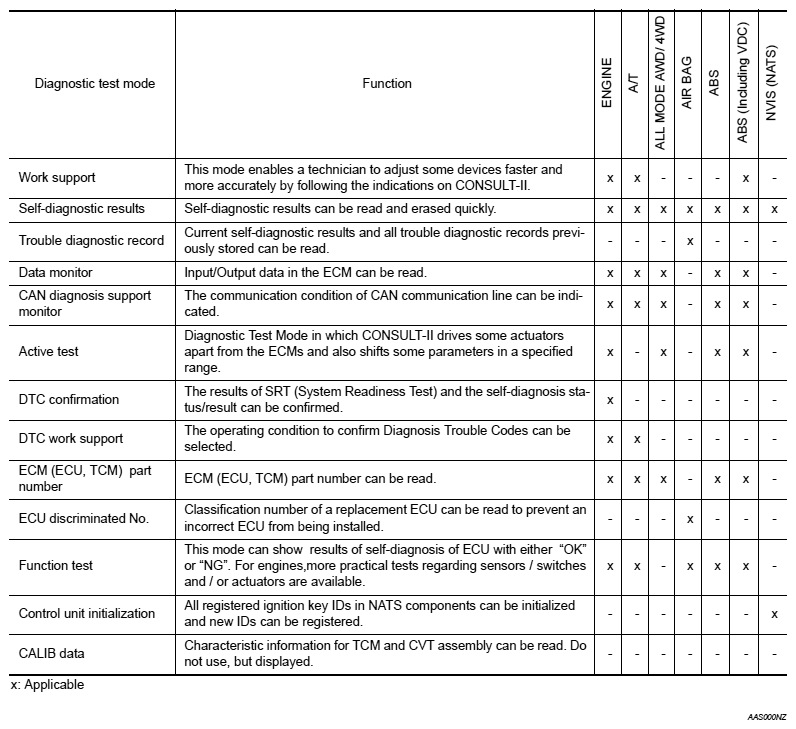

Fig 1: Function And System Application Chart

G06151823

Courtesy of NISSAN MOTOR CO., U.S.A.
