Removal and Installation: Notes

WARNING:
  • Be careful not to cut your hand on the insulator edge.
CAUTION:
  • Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance and shape.
  • Perform the operation with the exhaust system fully cooled down because the system will be hot just after engine stops.

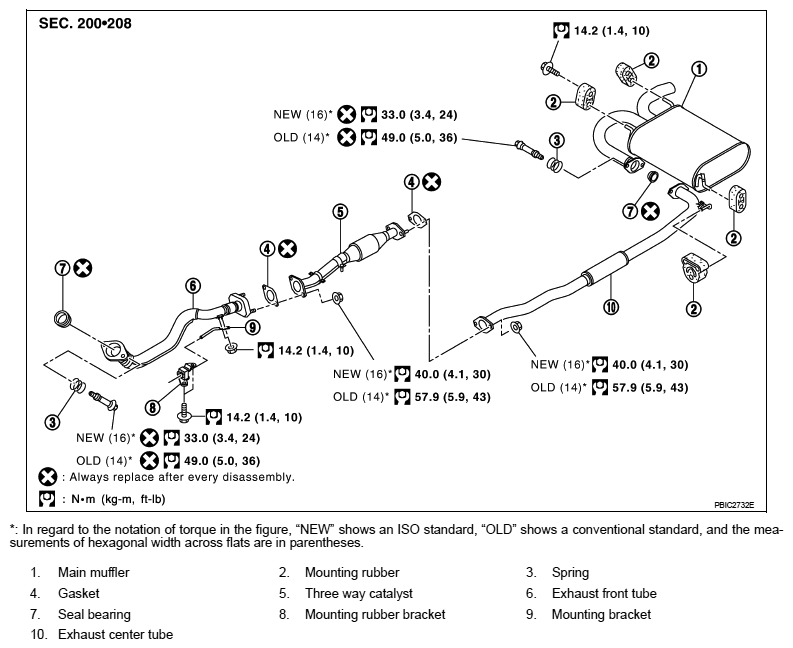

    Fig 1: Exhaust System Removal And Installation With Torque Specifications
    G06153074Courtesy of NISSAN MOTOR CO., U.S.A.
