Wiring Diagram - START -/M/T Models
For PG-POWER, refer to
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

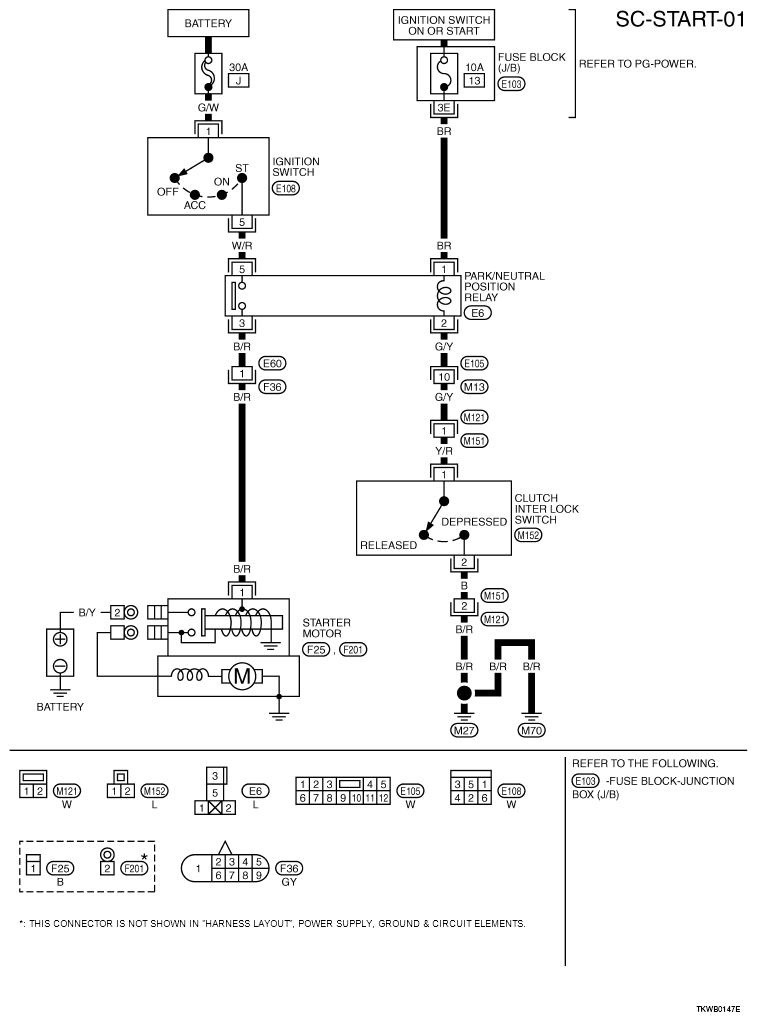

Fig 1: Wiring Diagram - SC-START-01
Courtesy of NISSAN MOTOR CO., U.S.A.
