Work Flow

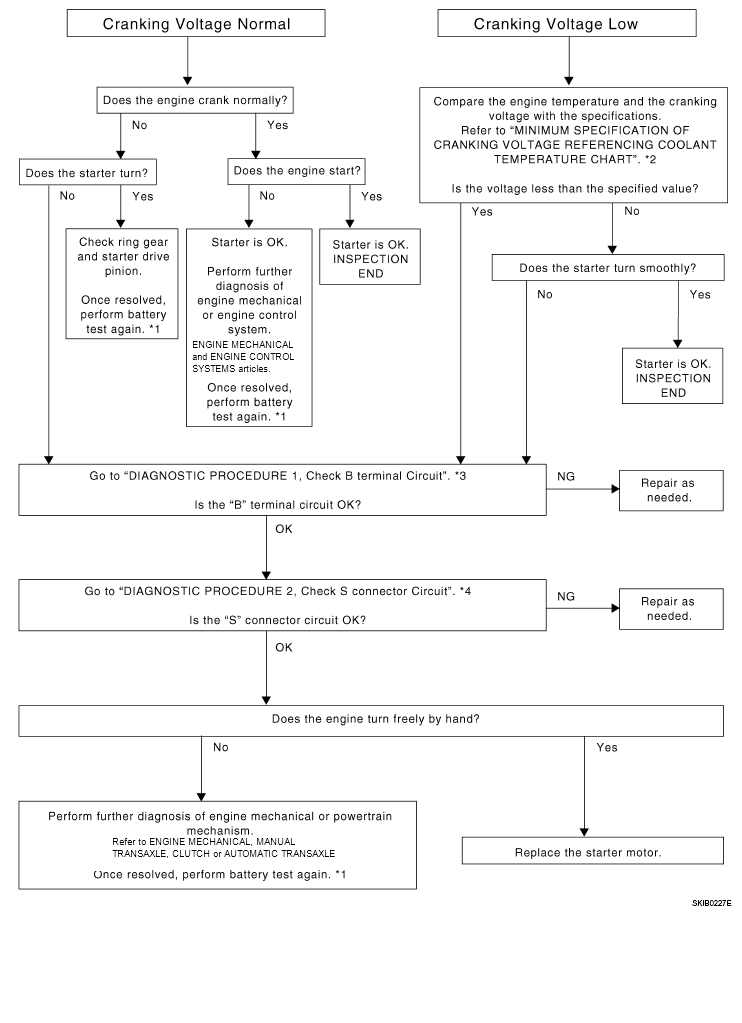

Fig 1: Work Flow Chart
G06155876Courtesy of NISSAN MOTOR CO., U.S.A.
*1 Trouble Diagnoses with Battery/Starting/Charging System Tester
*2 MINIMUM SPECIFICATION OF CRANKING VOLTAGE REFERENCING COOLANT TEMPERATURE
*3 CHECK "B" Terminal Circuit
*4 CHECK "S" Connector Circuit
