Work Flow

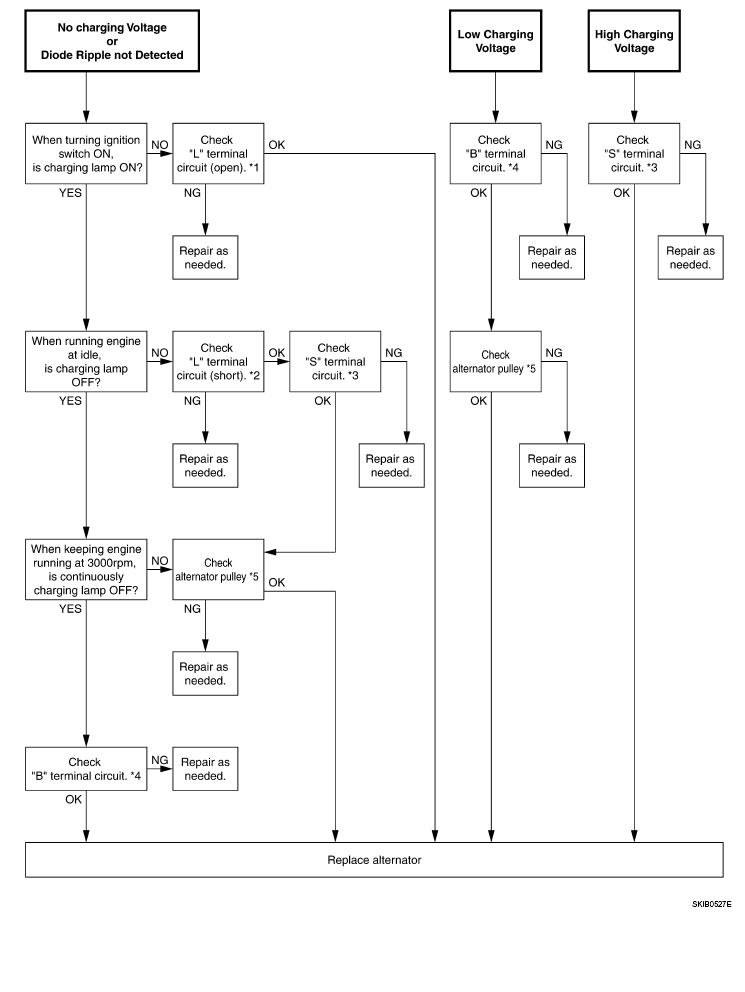

Fig 1: Work Flow Chart
G06155893Courtesy of NISSAN MOTOR CO., U.S.A.
*1 CHECK "L" Terminal Circuit (Open)
*2 CHECK "L" Terminal Circuit (Short)
*3 CHECK "S" Terminal Circuit
*4 CHECK "B" Terminal Circuit
*5 ALTERNATOR PULLEY INSPECTION
