Removal and Installation: Components

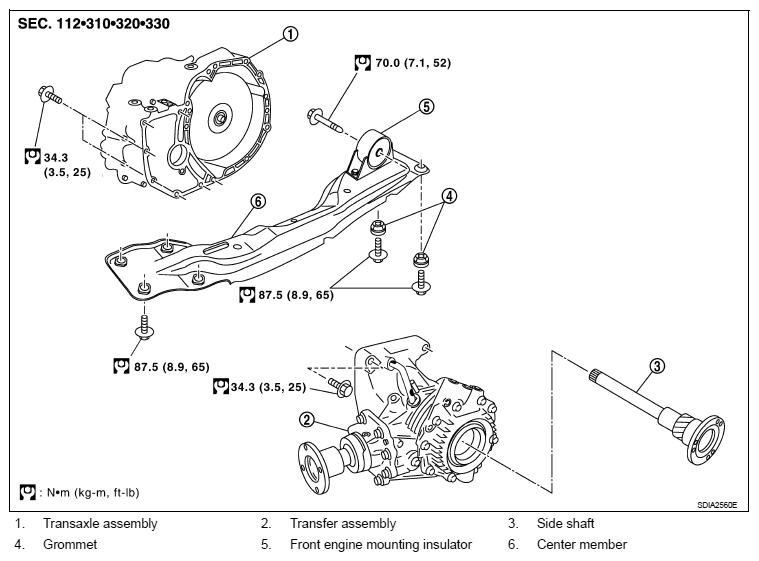

Fig 1: Transfer Assembly Replacement Components With Torque Specifications

G06154891

Courtesy of NISSAN MOTOR CO., U.S.A.
