Disassembly and Assembly: Components

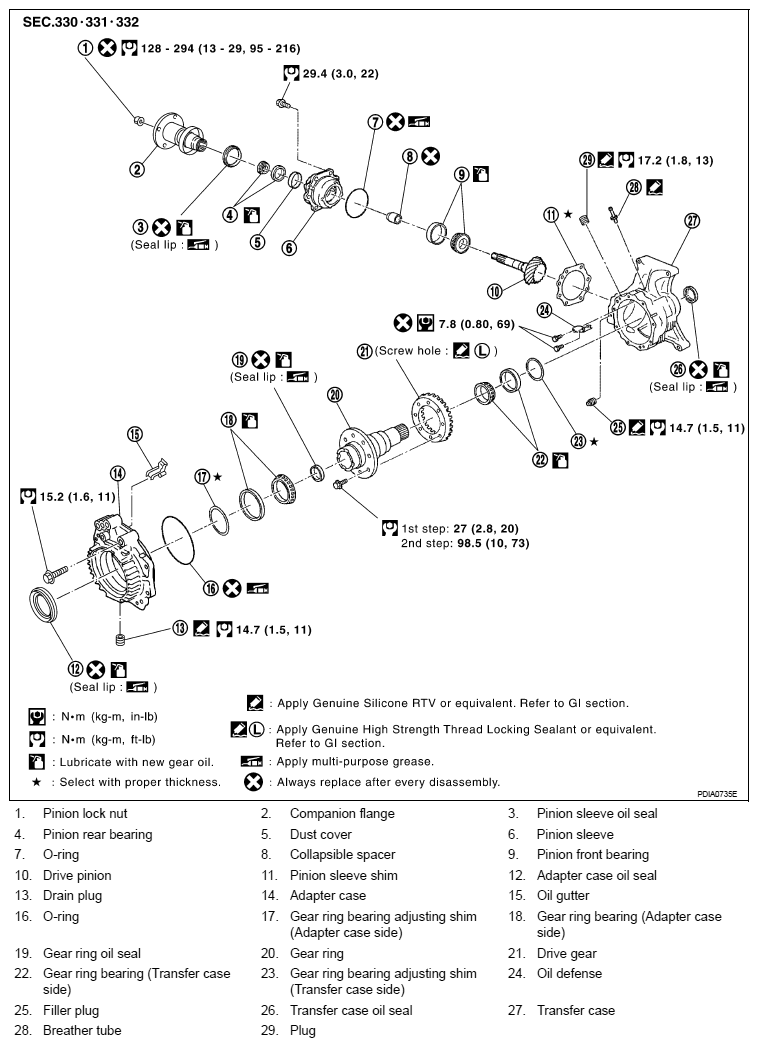

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications

G06154893

Courtesy of NISSAN MOTOR CO., U.S.A.
